Garden watering

Activate valves per MQTT over WiFi using an ESP8266

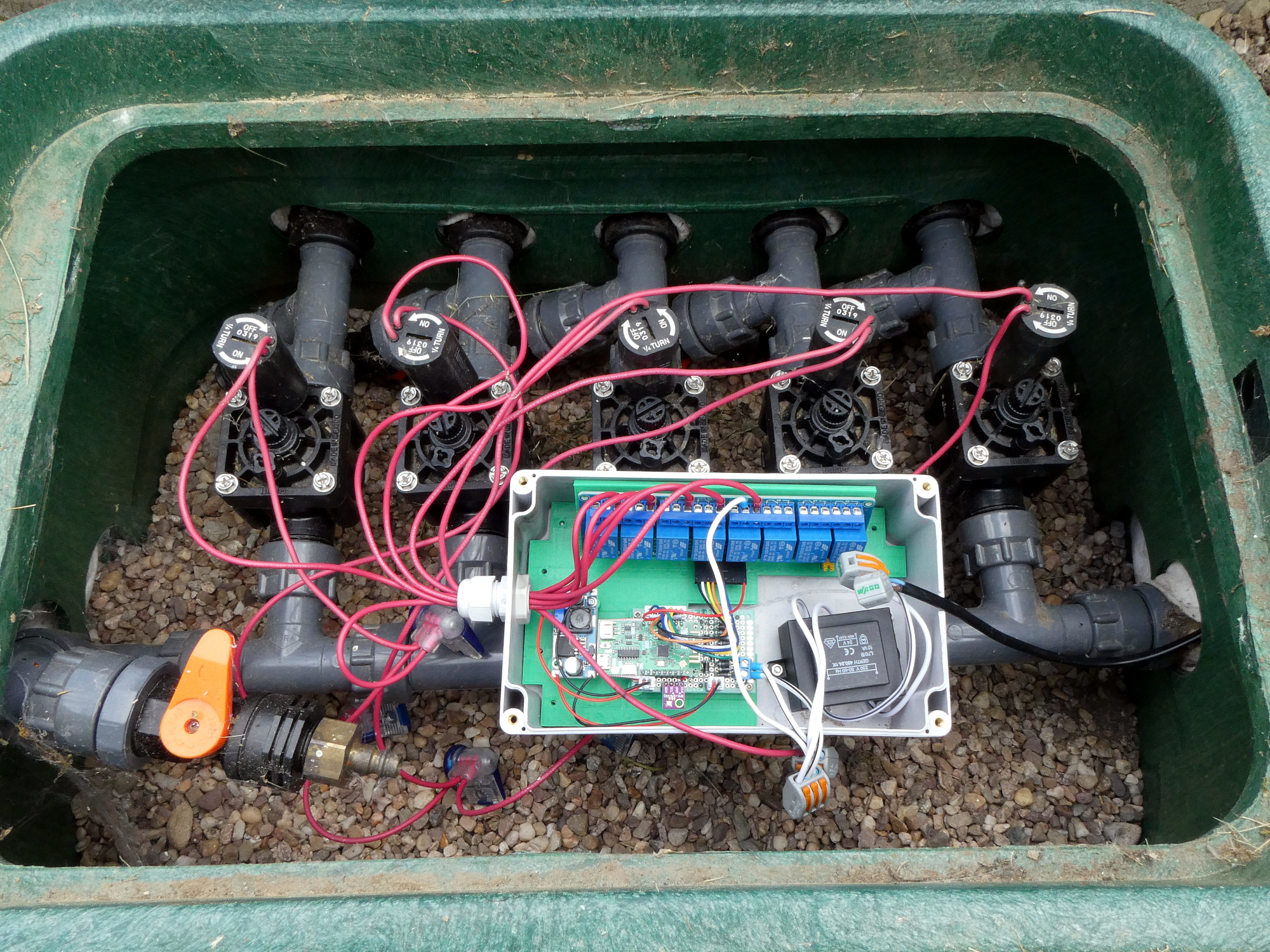

garden watering

In the last three summers we had months with no rain. Even my 10m³ rainwater tank did not suffice to provide water.

But the vegetable garden must be regularly supplied with water. To save water, I use drip hoses, and to simplify my life, I have automated the control of the irrigation.

BOM

It began with a command of a box with 5 magnetic valves from Hunter. When the box arrived I was startled by the size. Ok this will be hard work to dig the hole and ditches.

The box contained 5 valves Hunter PGV 101 MMB (3/4", 25 mm). The valves need 24 VAC, so we need a transformer. As the valves are never open at the same time a current of 1 A should suffice. As a recycled transformer was defective I had to buy a new one (40 W, IP44). There are cheap relay shields out there with Optocoupler, so I also bought such a board.

An ESP8266 (Lolin/Wemos D1 mini pro V2 connects us with the network over WiFi and MQTT is used to give commands and get data. The ESP8266 board is also powered by the transformer (don't use V<2 because a diode makes it difficult to power the board; look here). This is done with a LM2596 DC/DC buck converter breakout board.

As the whole thing will be contained in a IP65 waterproof enclosure, I wanted to monitor temperature and humidity in the box and added a BMP280 sensor. A piece of PLA from my 3D printer created with FreeCAD (files on git) helped to connect everything together.

Circuit

garden watering circuit

Some more pictures

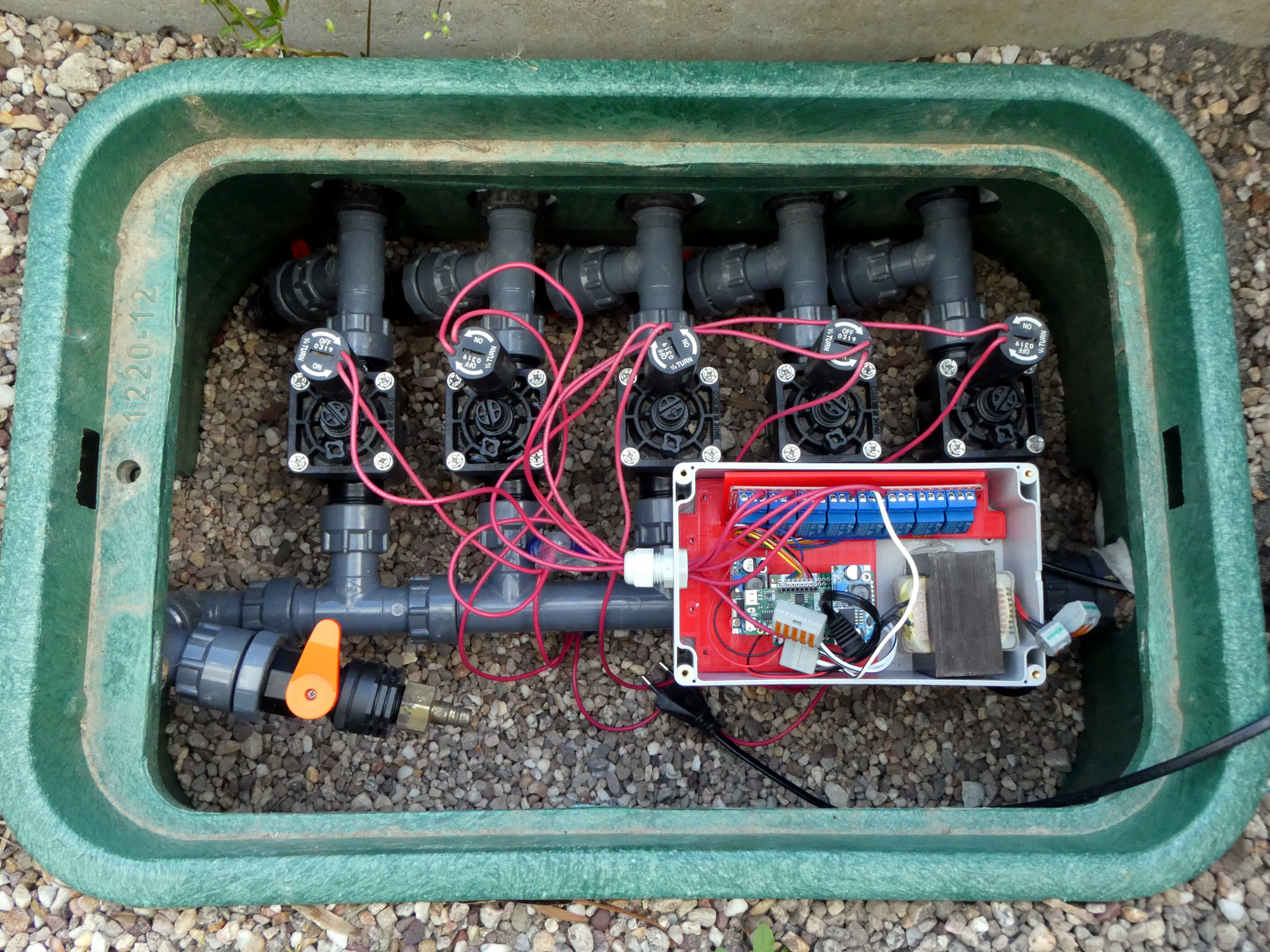

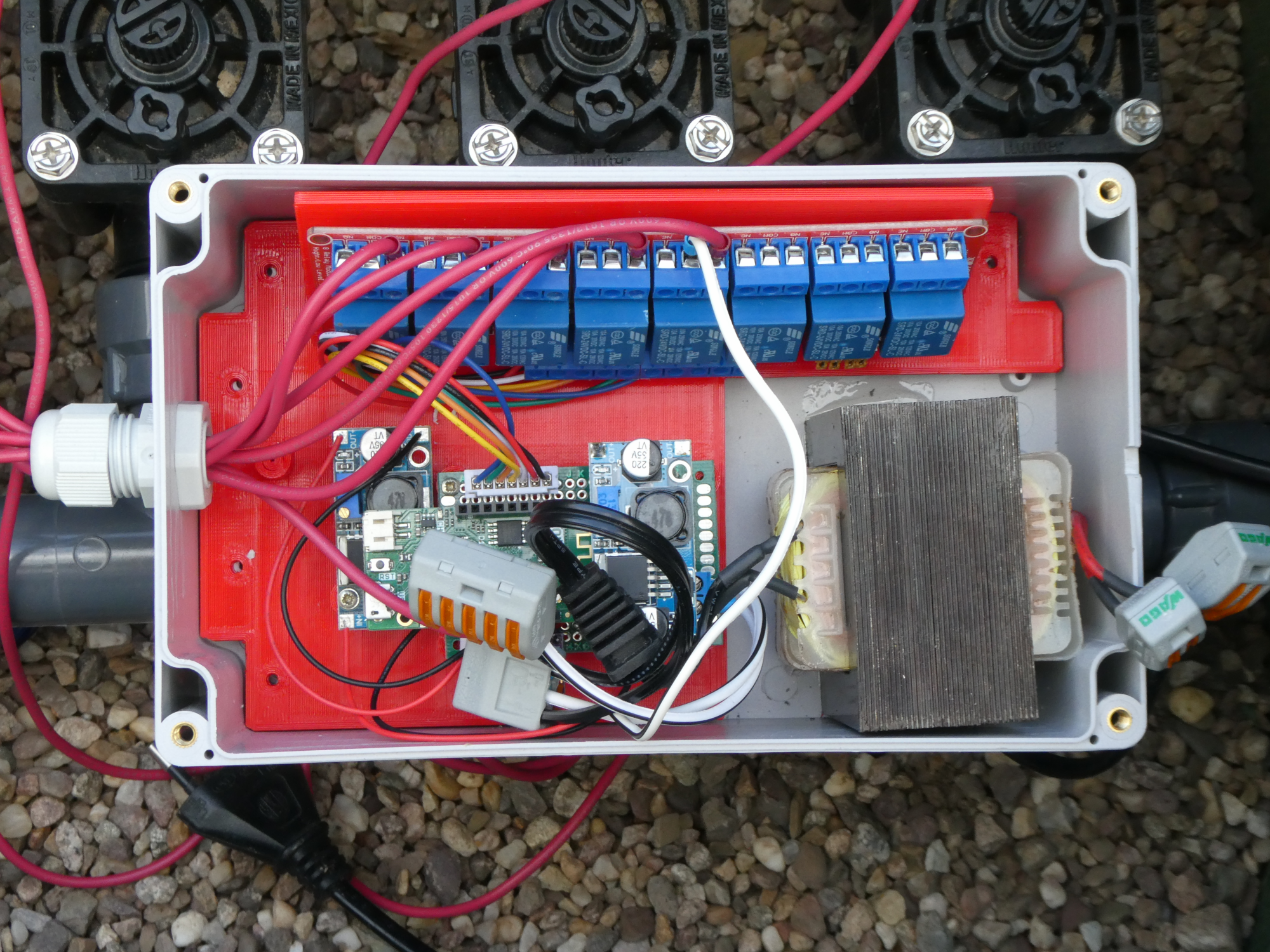

This is the older version. I changed the faulty transformer and the relay board with a 5 V version (I had mistakenly bought a 24 V version). So one DC/DC converter is no more needed. GPIO15 for relay 5 was exchanged with GPIO0 (because internal pull-down of GPIO15).

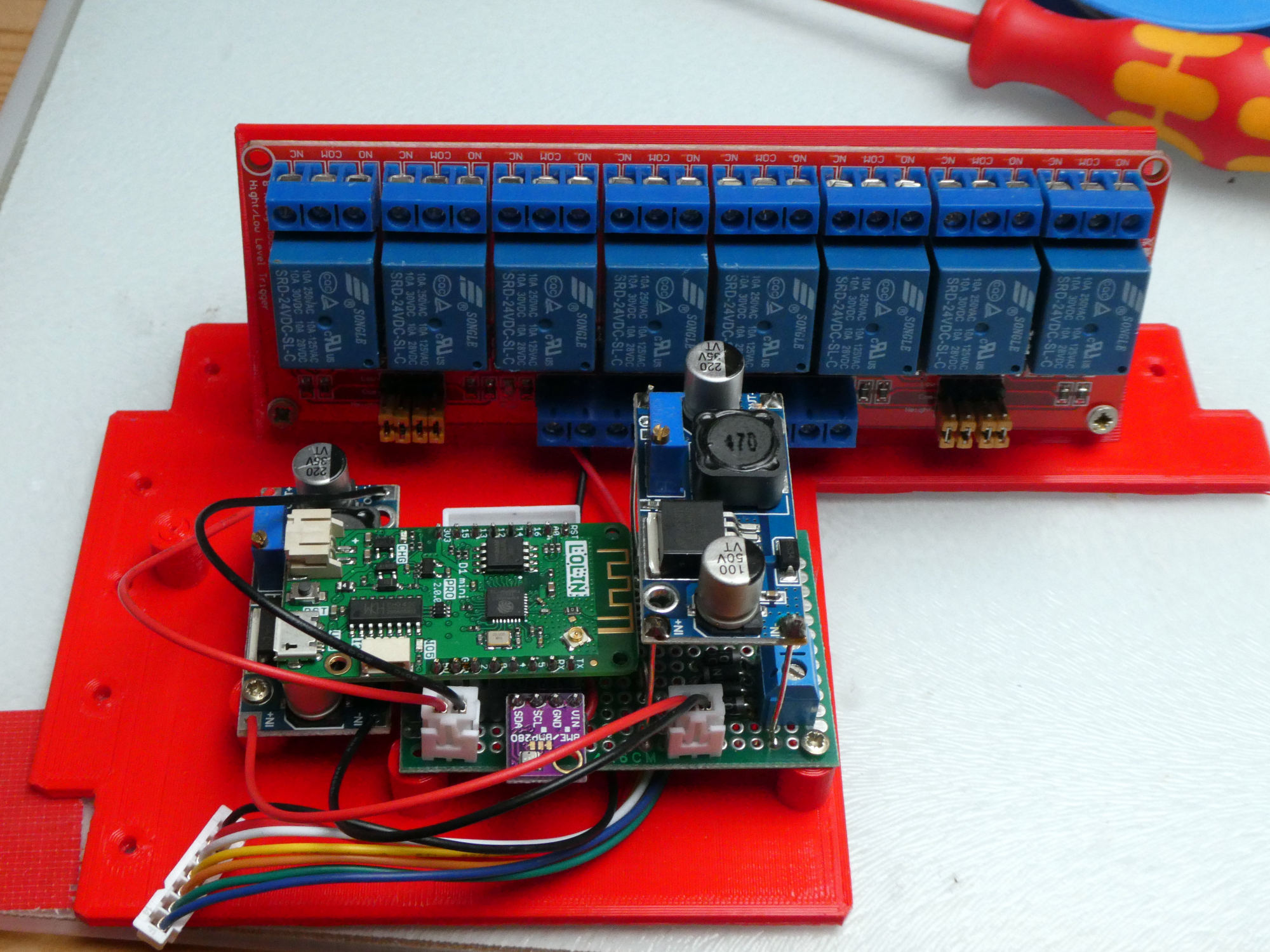

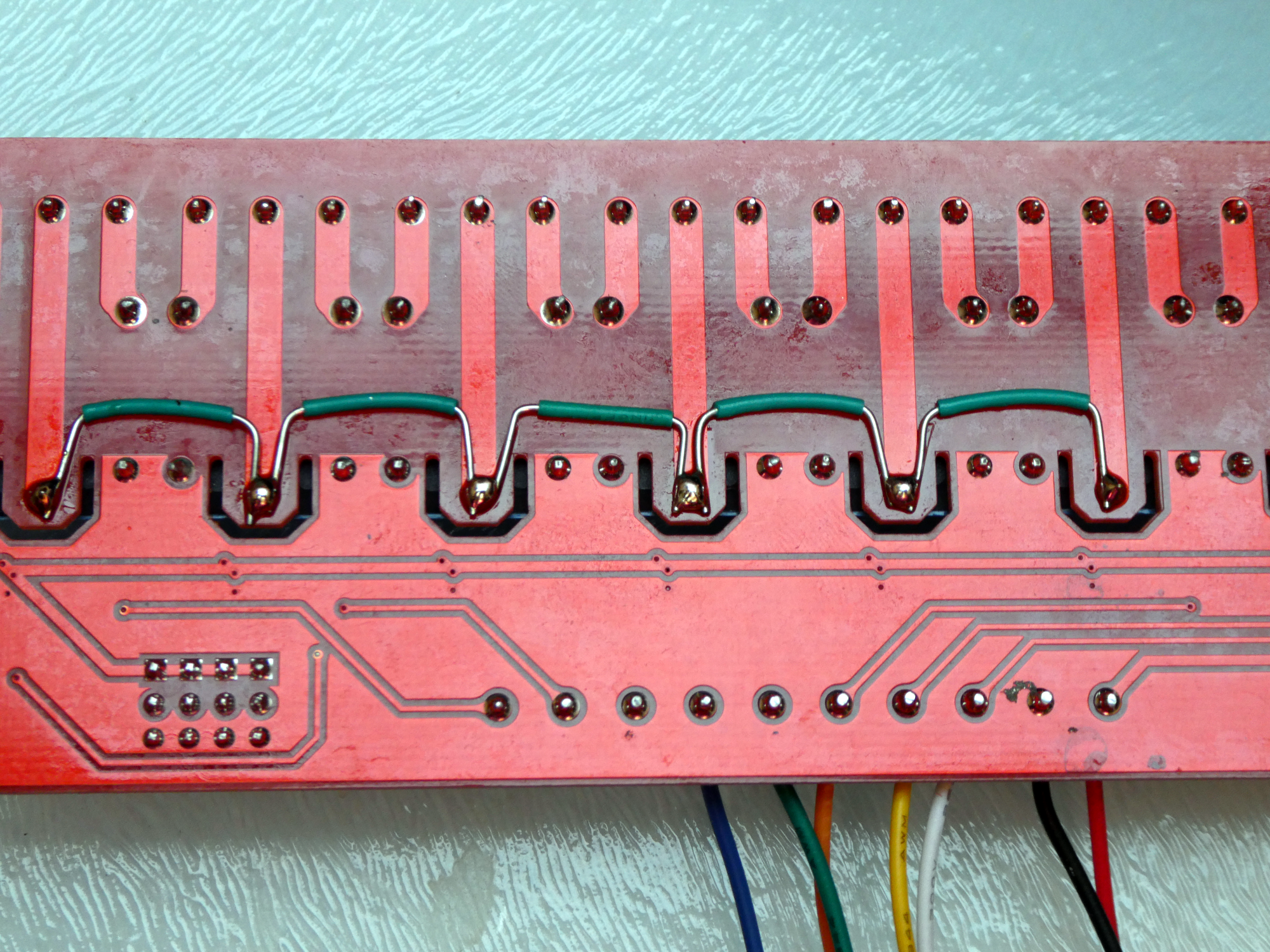

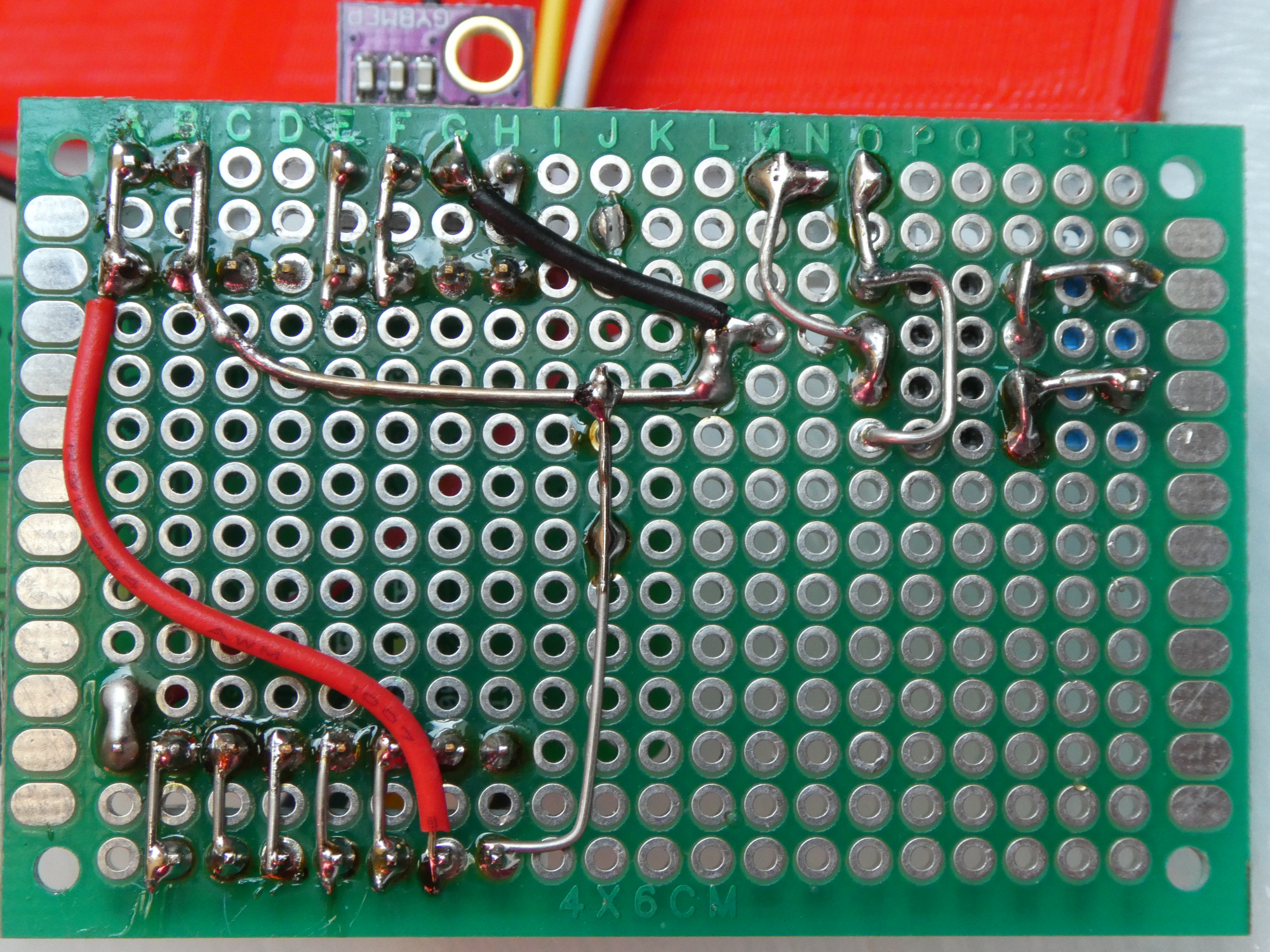

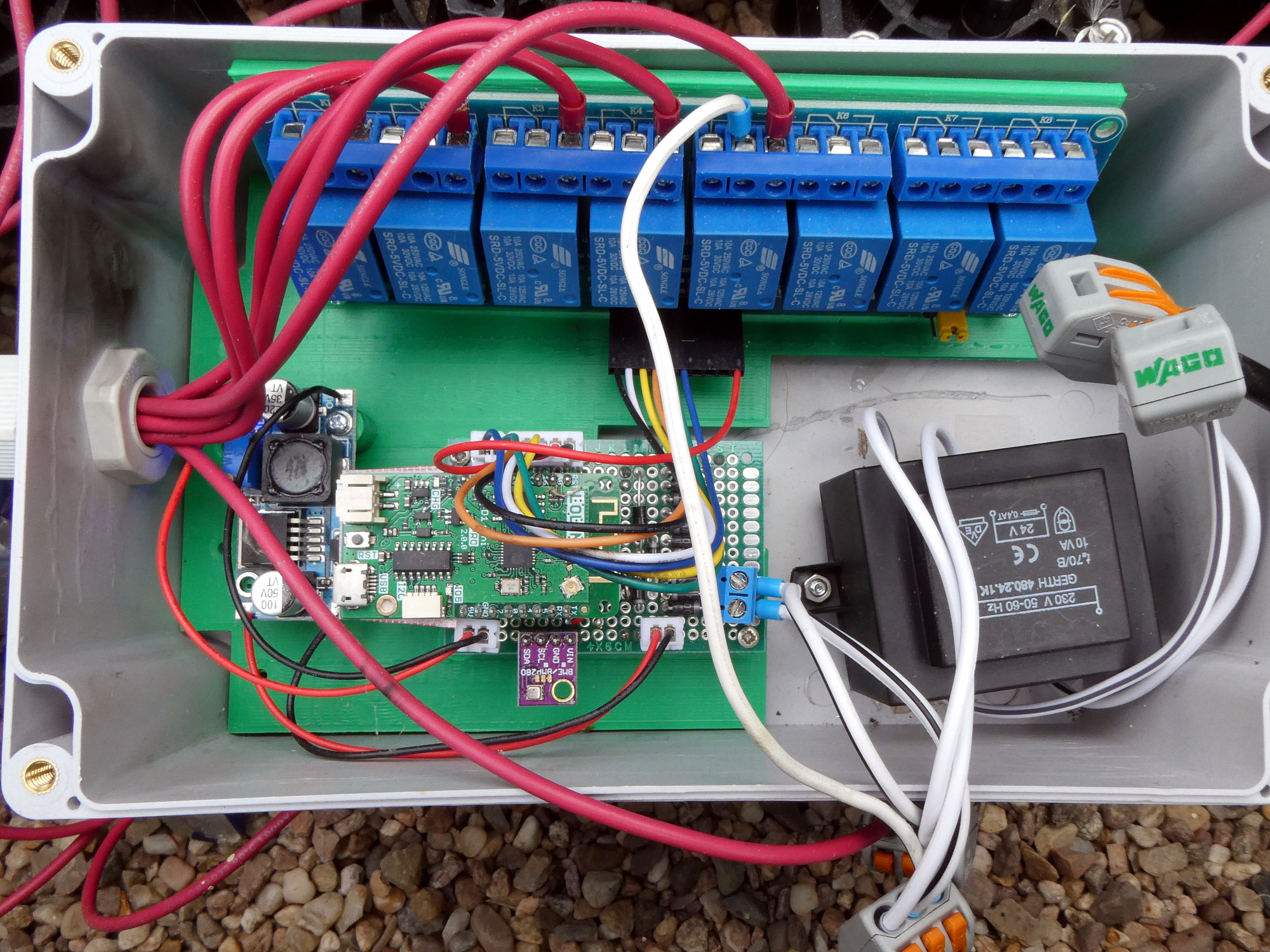

housing  pcb backrelay pcb  pla

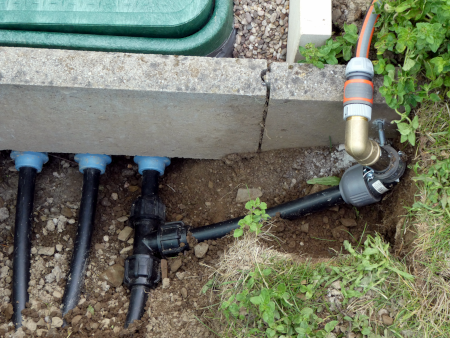

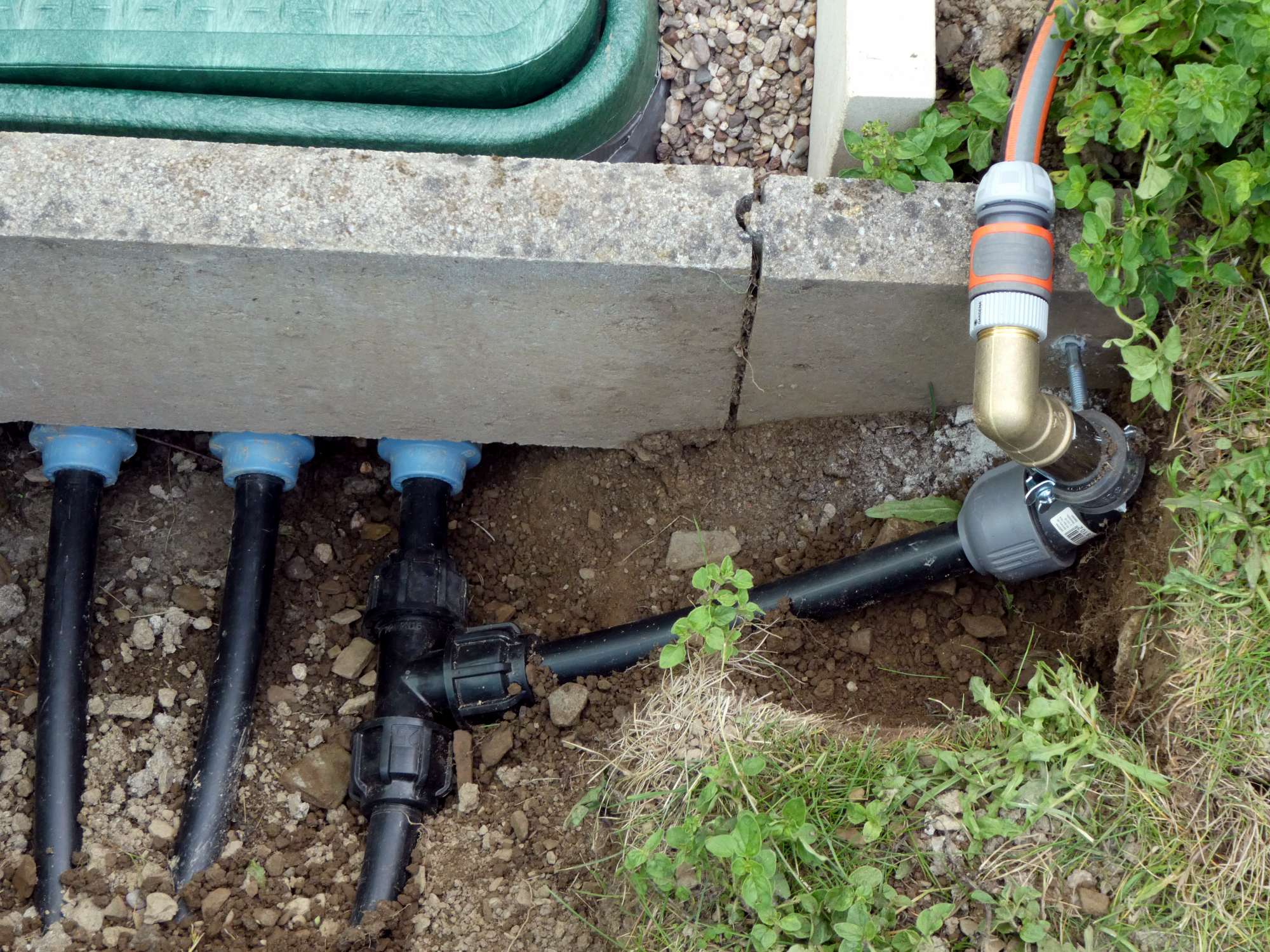

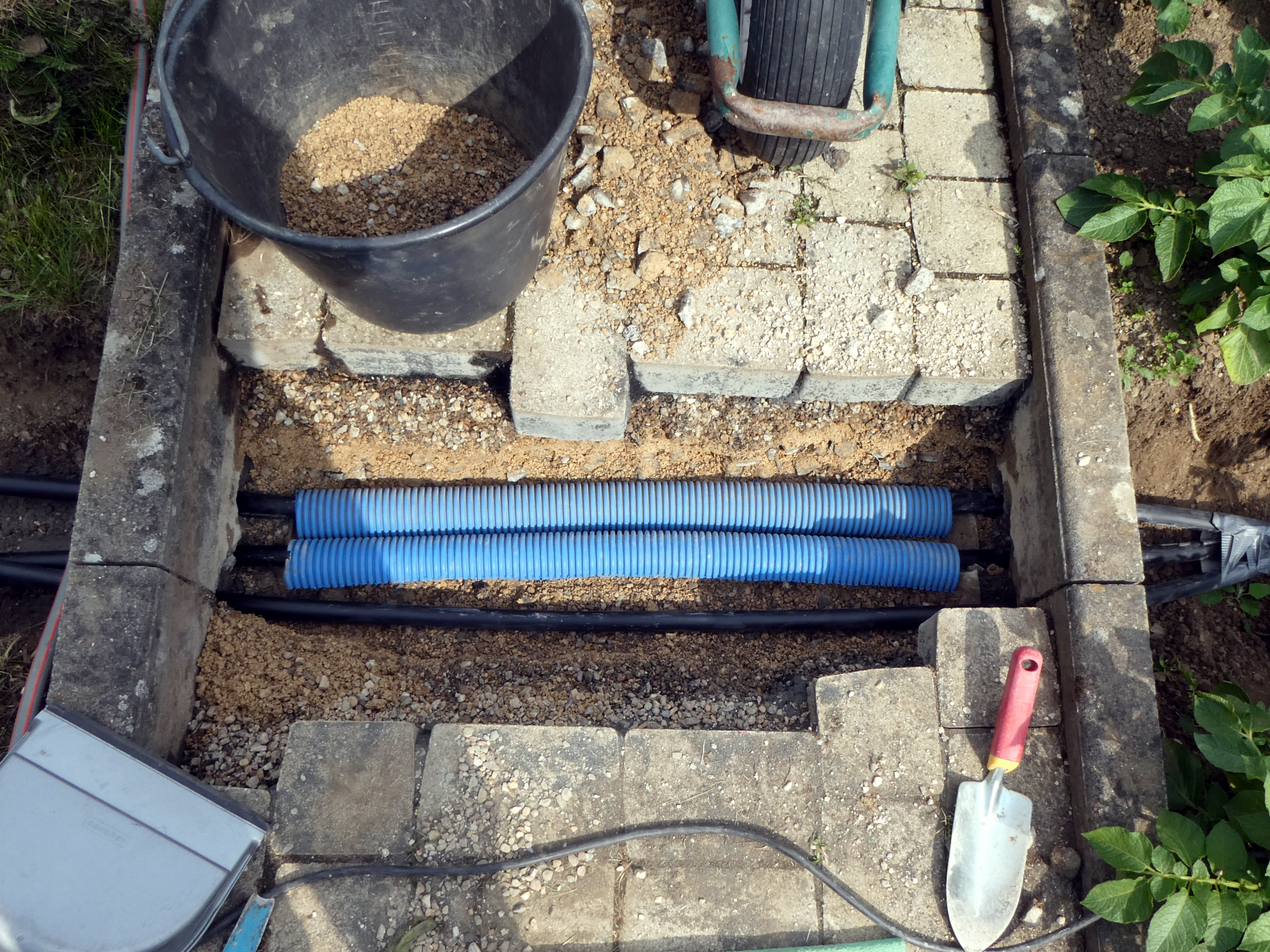

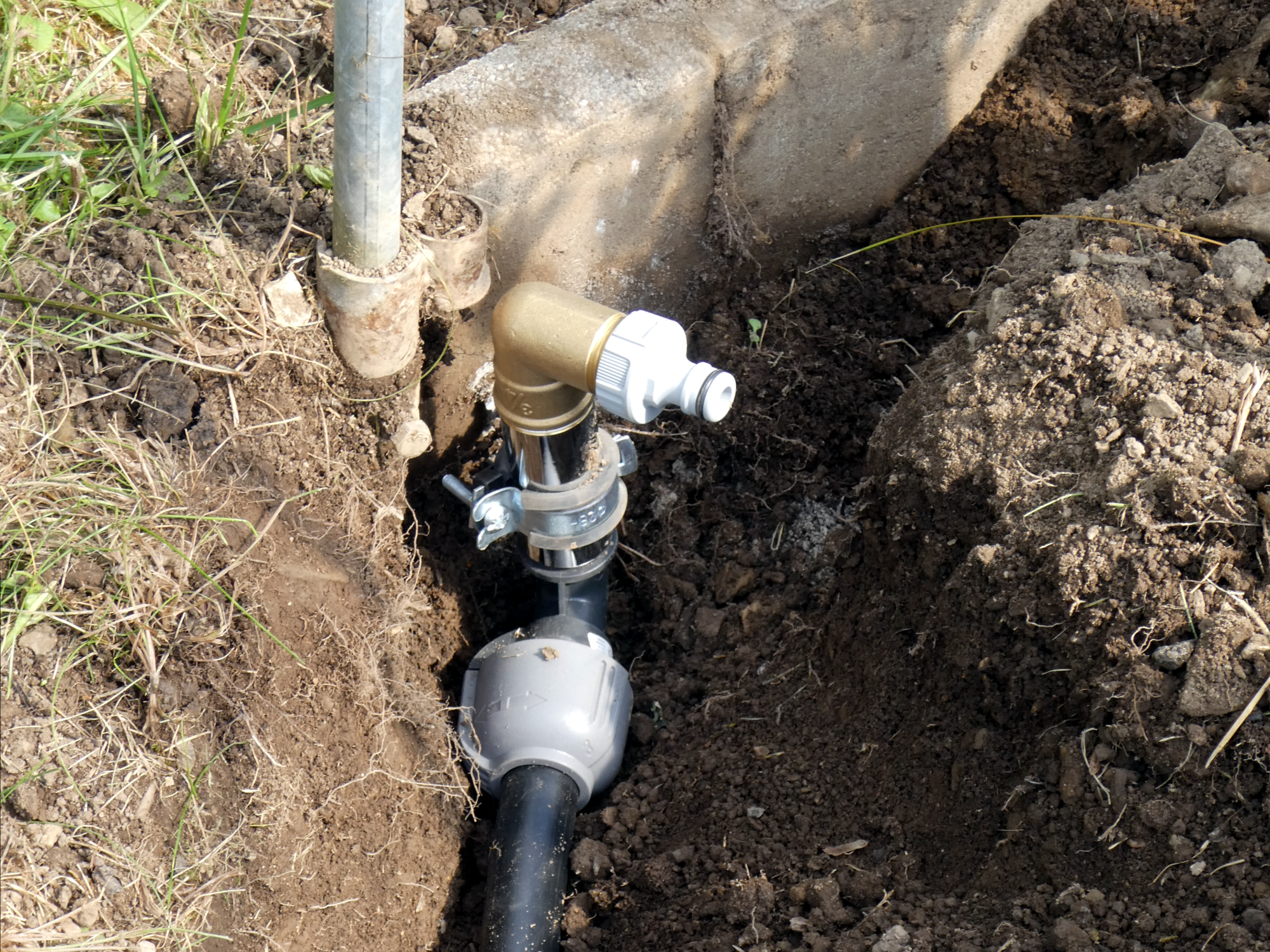

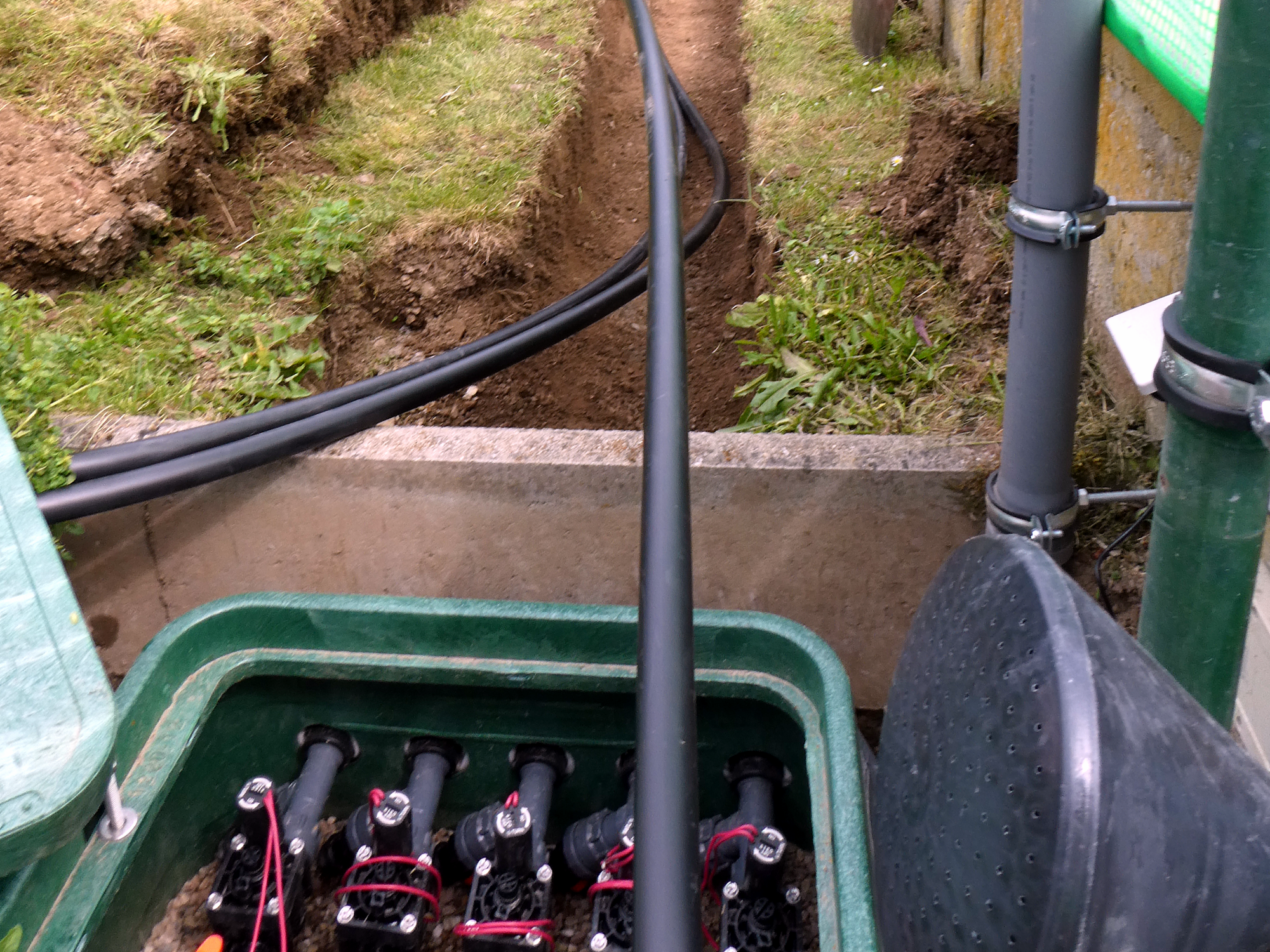

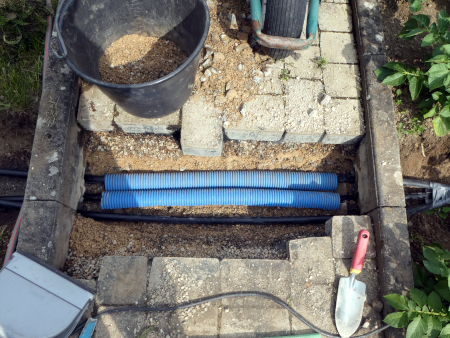

pipes  pipespipes  pipes

Software

The software communicates per MQTT over WiFi. It uses my ESPBacker library for WiFi and logging functions. To avoid version problems the lib is included in the sketch folder. Programming is done over OTA.

We get two topics:

    String MQTT_TOPIC_OUT = "weigu/garden/watering/data";
    String MQTT_TOPIC_IN = "weigu/garden/watering/command";

Commands are in JSON and have the following JSON format:

    {"Relay [0-4]":4,"Time [min]":20}

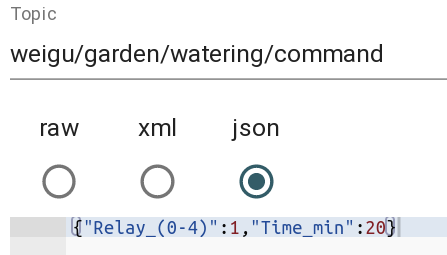

mqtt publish

Watering stops automatically after x minutes. To stop manually the time is set to zero:

    {"Relay [0-4]":4,"Time [min]":0}

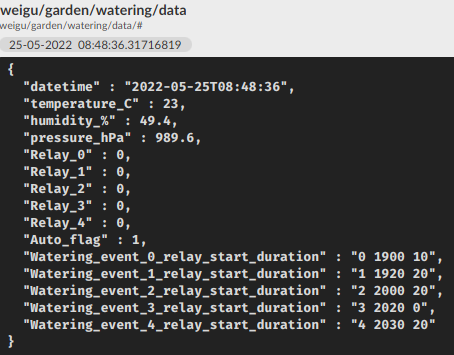

The following is seen on the data channel:

mqtt subscribe

The code is on Github:

    /*
      garden_watering.ino
      weigu.lu   V1.0 2021-07-06
    */

    // Publishes every in milliseconds
    const long PUBLISH_TIME = 60000;

    // Comment or uncomment the following lines suiting your needs
    //#define MQTTSECURE    // if you want a secure connection over MQTT (recommended!!)
    #define STATIC        // if static IP needed (no DHCP)
    #define OTA           // if Over The Air update needed (security risk!)
    // The file "secrets.h" has to be placed in the sketchbook libraries folder
    // in a folder named "Secrets" and must contain your secrets e.g.:
    // const char *MY_WIFI_SSID = "mySSID"; const char *MY_WIFI_PASSWORD = "myPASS";
    #define USE_SECRETS
    #define BME280_I2C

    #include "ESPToolbox.h"
    #include <PubSubClient.h>
    #include <ArduinoJson.h>
    #ifdef BME280_I2C
      #include <Wire.h>
      #include <BME280I2C.h>
    #endif

    /****** WiFi and network settings ******/
    #ifdef USE_SECRETS
      #include <secrets.h>
      const char *WIFI_SSID = MY_WIFI_SSID;           // ssid
      const char *WIFI_PASSWORD = MY_WIFI_PASSWORD;   // password
      #ifdef OTA                                      // Over The Air update settings
        const char *OTA_NAME = "garden_watering";
        const char *OTA_PASS_HASH = MY_OTA_PASS_HASH; // md5 hash for OTA
      #endif // ifdef OTA
    #else
      const char *WIFI_SSID = mySSID;           // if no secrets file, add your SSID here
      const char *WIFI_PASSWORD = myPASSWORD;   // if no secrets file, add your PASS here
      #ifdef OTA                                // Over The Air update settings
        const char *OTA_NAME = "garden_watering";
        const char *OTA_PASS_HASH = myOTAHASH;  // if no secrets file, add your OTA HASH here
      #endif // ifdef OTA
    #endif  // ifdef USE_SECRETS
    const char *NET_MDNSNAME = "watering";      // optional (access with myESP.local)
    const char *NET_HOSTNAME = "watering";      // optional
    #ifdef STATIC
      IPAddress NET_LOCAL_IP (192,168,1,89);    // 3x optional for static IP
      IPAddress NET_GATEWAY (192,168,1,20);
      IPAddress NET_MASK (255,255,255,0);
    #endif // ifdef STATIC*/
    const word UDP_LOG_PORT = 6666;             // UDP logging settings
    IPAddress UDP_LOG_PC_IP(192,168,1,50);
    const char *NTP_SERVER = "lu.pool.ntp.org"; // NTP settings
    // your time zone (https://remotemonitoringsystems.ca/time-zone-abbreviations.php)
    const char *TZ_INFO    = "CET-1CEST-2,M3.5.0/02:00:00,M10.5.0/03:00:00";

    /****** MQTT settings ******/
    #define MQTT_MAX_PACKET_SIZE 512
    const char *MQTT_SERVER = "192.168.1.60";
    const char *MQTT_CLIENT_ID = "garden_watering";
    String MQTT_TOPIC_OUT = "weigu/garden/watering/data";
    String MQTT_TOPIC_IN = "weigu/garden/watering/command";
    #ifdef MQTTSECURE // http://weigu.lu/tutorials/sensors2bus/06_mqtt/index.html
      const short MQTT_PORT = 8883;                      // port for secure communication
      const char *MQTT_USER = "me";
      const char *MQTT_PASS = "myMqttPass12!";
      const char *MQTT_PSK_IDENTITY = "btsiot1";
      const char *MQTT_PSK_KEY = "0123456789abcdef0123"; // hex string without 0x
      WiFiClientMQTTSECURE espClient;
    #else
      const short MQTT_PORT = 1883;                      // clear text = 1883
      WiFiClient espClient;
    #endif
    PubSubClient MQTT_Client(espClient);
    String mqtt_msg;
    DynamicJsonDocument doc_out(512);
    DynamicJsonDocument doc_in(256);

    /******* Relays *******/
    const byte PIN_RELAYS[] = {16, 14, 12, 13, 0};
    bool relay_start_flags[5] = {false,false,false,false,false};
    bool relay_stop_flags[5] = {true,true,true,true,true};
    unsigned long relay_times_ms[5] = {10000,20000,30000,40000,50000};
    unsigned long relay_prev_millis[5] = {0,0,0,0,0};

    /******* BME280 ******/
    float temp(NAN), hum(NAN), pres(NAN);
    #ifdef BME280_I2C
      BME280I2C bme;    // Default : forced mode, standby time = 1000 ms
                        // Oversampling = pressure ×1, temperature ×1, humidity ×1, filter off,
    #endif

    ESPToolbox Tb;

    /********** SETUP *************************************************************/
    void setup() {
      Tb.set_led_log(true);                 // use builtin LED for debugging
      Tb.set_serial_log(true,1);            // 2 parameter = interface (1 = Serial1)
      Tb.set_udp_log(true, UDP_LOG_PC_IP, UDP_LOG_PORT); // use "nc -kulw 0 6666"
      init_relays(PIN_RELAYS,sizeof(PIN_RELAYS));
      init_wifi();
      delay(1000);
      Tb.log_ln("Helu");
      #ifdef BME280_I2C
        init_bme280();
      #endif
      delay(2000);                                  // give it some time
      MQTT_Client.setServer(MQTT_SERVER,MQTT_PORT); //open connection MQTT server
      MQTT_Client.setCallback(MQTT_callback);
      //mqtt_connect();
      #ifdef OTA
        Tb.init_ota(OTA_NAME, OTA_PASS_HASH);
      #endif // ifdef OTA
      Tb.blink_led_x_times(3);
    }

    /********** LOOP  **************************************************************/
    void loop() {
      #ifdef OTA
        ArduinoOTA.handle();
      #endif // ifdef OTA
      handle_relays();
      // Publish every PUBLISH_TIME
      if (Tb.non_blocking_delay(PUBLISH_TIME)) {
        #ifdef BME280_I2C
          get_data_bme280();
        #endif
        doc_out["Temperature [C]"] = (int)(temp*10.0 + 0.5)/10.0;
        doc_out["Humidity [%]"] = (int)(hum*10.0 + 0.5)/10.0;
        doc_out["Pressure [hp]"] = (int)((pres + 5)/10)/10.0;
        doc_out["Relay_0 [0/1]"] = (byte)!relay_stop_flags[0];
        doc_out["Relay_1 [0/1]"] = (byte)!relay_stop_flags[1];
        doc_out["Relay_2 [0/1]"] = (byte)!relay_stop_flags[2];
        doc_out["Relay_3 [0/1]"] = (byte)!relay_stop_flags[3];
        doc_out["Relay_4 [0/1]"] = (byte)!relay_stop_flags[4];
        mqtt_msg = "";
        serializeJson(doc_out, mqtt_msg);
        MQTT_Client.publish(MQTT_TOPIC_OUT.c_str(),mqtt_msg.c_str());
      }
      if (WiFi.status() != WL_CONNECTED) {   // if WiFi disconnected, reconnect
        init_wifi();
      }
      if (!MQTT_Client.connected()) {        // reconnect mqtt client, if needed
        mqtt_connect();
      }
      MQTT_Client.loop();                    // make the MQTT live
      yield();
    }

    /********** WiFi functions ****************************************************/
    void init_wifi() {
      #ifdef STATIC
        Tb.init_wifi_sta(WIFI_SSID, WIFI_PASSWORD, NET_HOSTNAME, NET_LOCAL_IP,
                      NET_GATEWAY, NET_MASK);
      #else
        Tb.init_wifi_sta(WIFI_SSID, WIFI_PASSWORD, NET_MDNSNAME, NET_HOSTNAME);
      #endif // ifdef STATIC
    }

    /********** MQTT functions ****************************************************/
    // connect to MQTT server
    void mqtt_connect() {
      while (!MQTT_Client.connected()) { // Loop until we're reconnected
        Tb.log("Attempting MQTT connection...");
        #ifdef MQTTSECURE
          if (MQTT_Client.connect(MQTT_CLIENT_ID, MQTT_USER, MQTT_PASS)) {
        #else
          if (MQTT_Client.connect(MQTT_CLIENT_ID)) { // Attempt to connect
        #endif // ifdef UNMQTTSECURE
          Tb.log_ln("MQTT connected");
          MQTT_Client.subscribe(MQTT_TOPIC_IN.c_str());
          // Once connected, publish an announcement...
          //MQTT_Client.publish(MQTT_TOPIC, "{\"dt\":\"connected\"}");
          // don't because OpenHAB does not like this ...
        }
        else {
          Tb.log("MQTT connection failed, rc=");
          Tb.log(String(MQTT_Client.state()));
          Tb.log_ln(" try again in 5 seconds");
          delay(5000);  // Wait 5 seconds before retrying
        }
      }
    }

    // Command struct: {"Relay [0-4]":1,"Time [min]":20};
    void MQTT_callback(char* topic, byte* payload, unsigned int length) {
      String message;
      Tb.log_ln("Message arrived [" + String(topic) + "] ");
      for (int i=0;i<length;i++) {
        message += String((char)payload[i]);
      }
      Tb.log_ln(message);
      deserializeJson(doc_in, message);
      byte nr = doc_in["Relay [0-4]"];
      unsigned long time_ms = doc_in["Time [min]"];
      time_ms = time_ms * 60UL *1000UL;
      Tb.log_ln("Nr: " + String(nr) + " time: " + String(time_ms));
      if ((nr >= 0) && (nr <= 4)) {
        if (time_ms != 0) {
          relay_times_ms[nr] = time_ms;
          relay_start_flags[nr] = true;
        }
        else {
          relay_times_ms[nr] = 0;
        }
      }
    }

    /********** BME280 functions **************************************************/
    #ifdef BME280_I2C
      void init_bme280() {
        Wire.begin();
        while(!bme.begin()) {
          Tb.log_ln("Could not find BME280 sensor!");
          delay(1000);
        }
        switch(bme.chipModel())  {
           case BME280::ChipModel_BME280:
             Tb.log_ln("Found BME280 sensor! Success.");
             break;
           case BME280::ChipModel_BMP280:
             Tb.log_ln("Found BMP280 sensor! No Humidity available.");
             break;
           default:
             Tb.log_ln("Found UNKNOWN sensor! Error!");
        }
      }

    void get_data_bme280() {
      BME280::TempUnit tempUnit(BME280::TempUnit_Celsius);
      BME280::PresUnit presUnit(BME280::PresUnit_Pa);
      bme.read(pres, temp, hum, tempUnit, presUnit);
      Tb.log_ln("Temp: " + (String(temp)) + " Hum: " + (String(hum)) +
               " Pres: " + (String(pres)));
    }
    #endif  // BME280_I2C

    /********** Relay functions **************************************************/
    void init_relays(const byte PIN_RELAYS[], byte number_of_relays) {
      for (byte i=0; i<number_of_relays; i++) {
        pinMode(PIN_RELAYS[i],OUTPUT);
      }
      for (byte i=0; i<number_of_relays; i++) {  // all off (neg. logic!)
        digitalWrite(PIN_RELAYS[i],HIGH);
      }
    }

    void handle_relays() {
      for (byte i=0; i<5; i++) {
        if (relay_start_flags[i] == true) {
          relay_start_flags[i] = false;
          relay_stop_flags[i] = false;
          digitalWrite(PIN_RELAYS[i],LOW);
          relay_prev_millis[i] = millis();
          Tb.log_ln("Relay Nr: " + String(i) + " started (" + String(millis()) + ')');
        }
        if (relay_stop_flags[i] == false) {
          if ((millis() - relay_prev_millis[i]) > relay_times_ms[i]) {
            relay_stop_flags[i] = true;
            digitalWrite(PIN_RELAYS[i],HIGH);
            Tb.log_ln("Relay Nr: " + String(i) + " stopped (" + String(millis()) + ')');
          }
        }
      }
    }
