Midi monitor

Last updated: 13/09/18

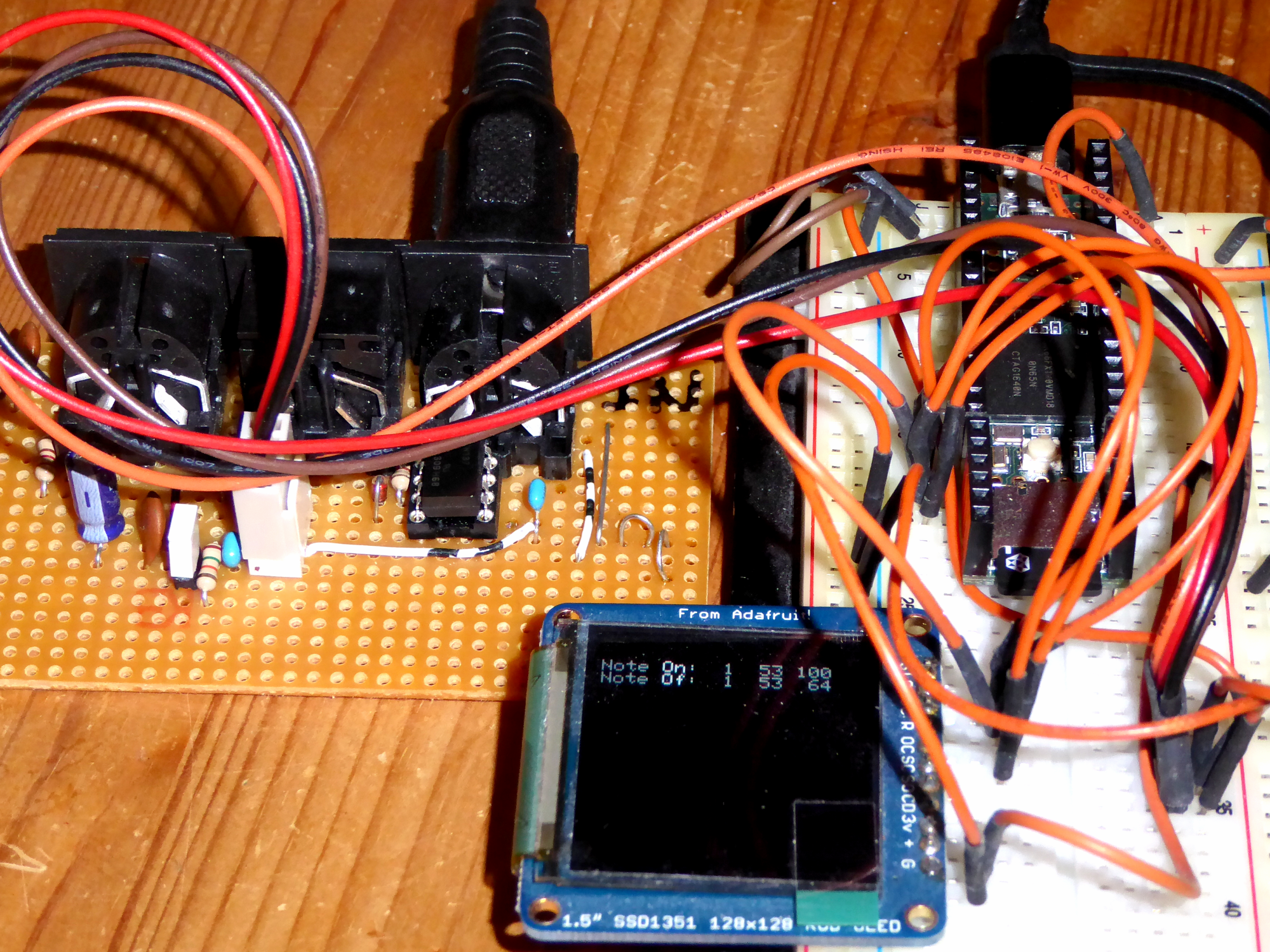

This is an absolut minimal Midi monitor, using a Teensy 3.6 from pjrc and an OLED display SSD1351 from adafruit.

Thanks to the Teensy midi library the software is a piece of cake.

midi monitor

Circuit

The circuits are basically the standard midi circuits.

midi monitor

BOM
3 220Ω (R1-R3)
1 10kΩ; (R4)
1 15kΩ (R5)
2 100nF (C1, C3)
1 10µF (C2)
1 1N4148
1 6N137
1 Teensy 3.6
1 SSD1351 128x128 16-bit colour 1.5"
3 Midi Jack
2 pin header 4pol

Software

You have to install the SSD1351 and the gfx libraries from adafruit (Sketch-Include Library-Manage Libraries...).

Here is the sketch:

    /***************************************************
      midi monitor
      weigu.lu
     ****************************************************/

    #include <Adafruit_GFX.h>
    #include <Adafruit_SSD1351.h>
    #include <SPI.h>
    #include <MIDI.h>

    MIDI_CREATE_DEFAULT_INSTANCE();

    // Display OLED 128x128 1.5" SSD1351 Adafruit
    #define cs   24
    #define rst  25
    #define dc   26
    #define sclk 27
    #define mosi 28
    #define  BLACK          0x0000 // Color definitions
    #define BLUE            0x001F
    #define RED             0xF800
    #define GREEN           0x07E0
    #define CYAN            0x07FF
    #define MAGENTA         0xF81F
    #define YELLOW          0xFFE0
    #define WHITE           0xFFFF

    Adafruit_SSD1351 disp = Adafruit_SSD1351(cs, dc, mosi, sclk, rst);

    uint16_t time = millis();
    char buf[10];

    void setup(void) {
      Serial.begin(9600);
      Serial.print("hello!");
      disp.begin();
      Serial.println("init");
      disp.setRotation(3); //0 no rotation, 1=90, 2=180, 3=270 clockwise.
      time = millis() - time;
      Serial.println(time, DEC);
      delay(100);
      greetingText();
      Serial.println("done");
      delay(1000);
      MIDI.setHandleNoteOn(handleNoteOn);
      MIDI.setHandleNoteOff(handleNoteOff);
      MIDI.setHandleControlChange(handleControlChange);
      MIDI.setHandleSystemExclusive(handleSystemExclusive);
      MIDI.setHandlePitchBend(handlePitchBend);
      MIDI.begin(MIDI_CHANNEL_OMNI);
    }

    void loop() {
      MIDI.read();
    }

    // Greeting Text for 3 seconds
    void greetingText() {
      disp.fillScreen(BLACK);
      delay(200);
      disp.fillScreen(BLACK);
      delay(1000);
      disp.setTextColor(YELLOW);
      disp.setTextSize(2);
      disp.setCursor(40, 20);
      disp.print("MIDI");
      disp.setCursor(20, 50);
      disp.print("MONITOR");
      disp.setCursor(40, 80);
      disp.print("V1.0");
      disp.setCursor(10, 120);
      disp.setTextSize(1);
      disp.setTextColor(GREEN);
      disp.print("by weigu.lu");
      delay(2000);
      disp.setTextColor(WHITE,BLACK);
      disp.setTextSize(1);
      disp.fillScreen(BLACK);
    }

    void handleNoteOn(byte channel, byte pitch, byte velocity) {
      disp.setCursor(0, 8);
      disp.print("Note On: ");
      sprintf(buf, "%2d", channel);
      disp.print(buf);
      disp.print(" ");
      sprintf(buf, "%3d", pitch);
      disp.print(buf);
      disp.print(" ");
      sprintf(buf, "%3d", velocity);
      disp.print(buf);
    }

    void handleNoteOff(byte channel, byte pitch, byte velocity) {
      disp.setCursor(0, 16);
      disp.print("Note Of: ");
      sprintf(buf, "%2d", channel);
      disp.print(buf);
      disp.print(" ");
      sprintf(buf, "%3d", pitch);
      disp.print(buf);
      disp.print(" ");
      sprintf(buf, "%3d", velocity);
      disp.print(buf);
    }

    void handlePitchBend(byte channel, int bend) {
      disp.setCursor(0, 32);
      disp.print("PBend:   ");
      sprintf(buf, "%2d", channel);
      disp.print(buf);
      disp.print(" ");
      sprintf(buf, "%5d", bend);
      disp.print(buf);
    }

    void handleControlChange(byte channel, byte number, byte value) {
      disp.setCursor(0, 48);
      disp.print("Cchange: ");
      sprintf(buf, "%2d", channel);
      disp.print(buf);
      disp.print(" ");
      sprintf(buf, "%3d", number);
      disp.print(buf);
      disp.print(" ");
      sprintf(buf, "%4d", value);
      disp.print(buf);
    }

    void handleSystemExclusive(byte * array, unsigned size) {
      disp.setCursor(0, 64);
      disp.print("SysEx:  ");
      sprintf(buf, "%5d", *array);
      disp.print(*array);
      disp.print(buf);
      disp.print(" ");
      sprintf(buf, "%3d", size);
      disp.print(buf);
      disp.print(" ");
      disp.print(size);
    }
