Piventi: Refurbishing an MVHR with Raspi and Teensy using MQTT

last updated: 03/06/20

In 1999 I bought my Mechanical Ventilation Heat Recovery (MVHR) system from Paul.

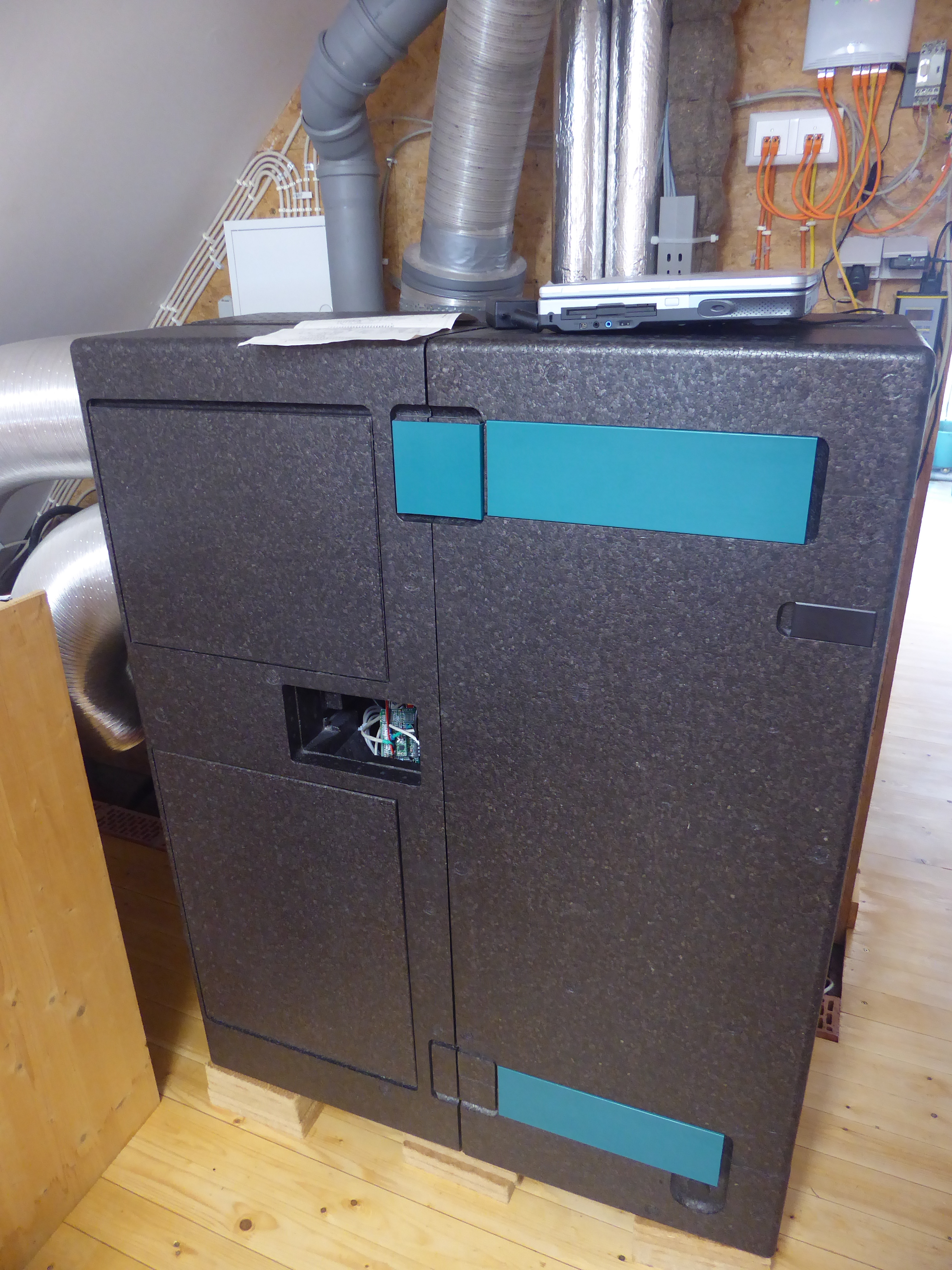

Paul ventilation housing

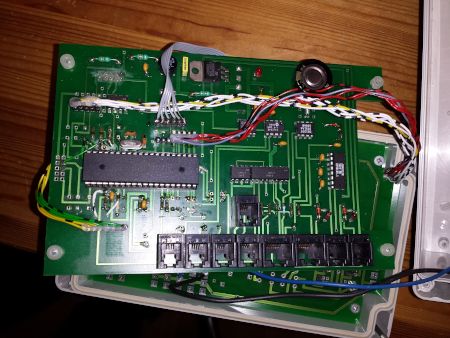

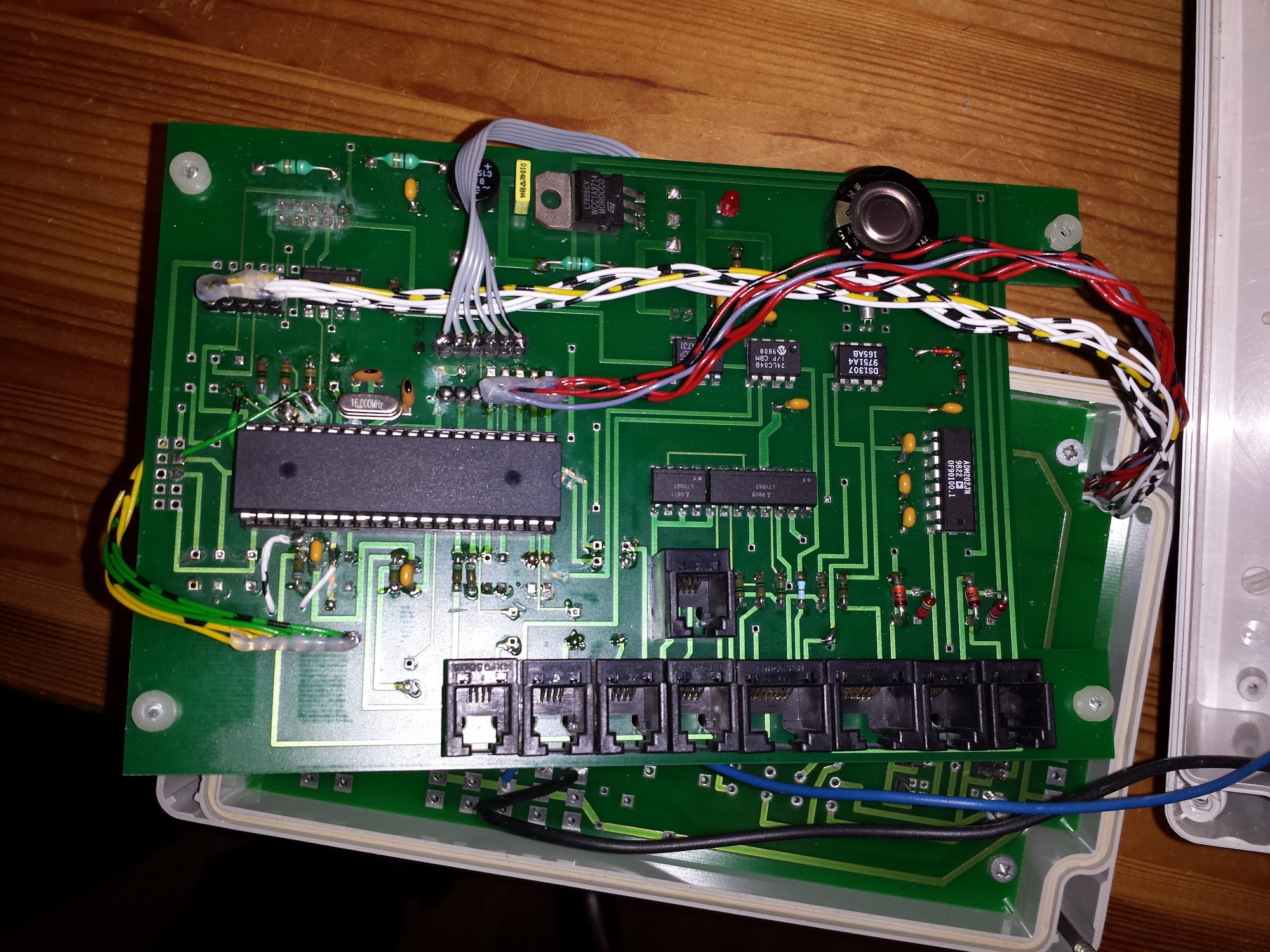

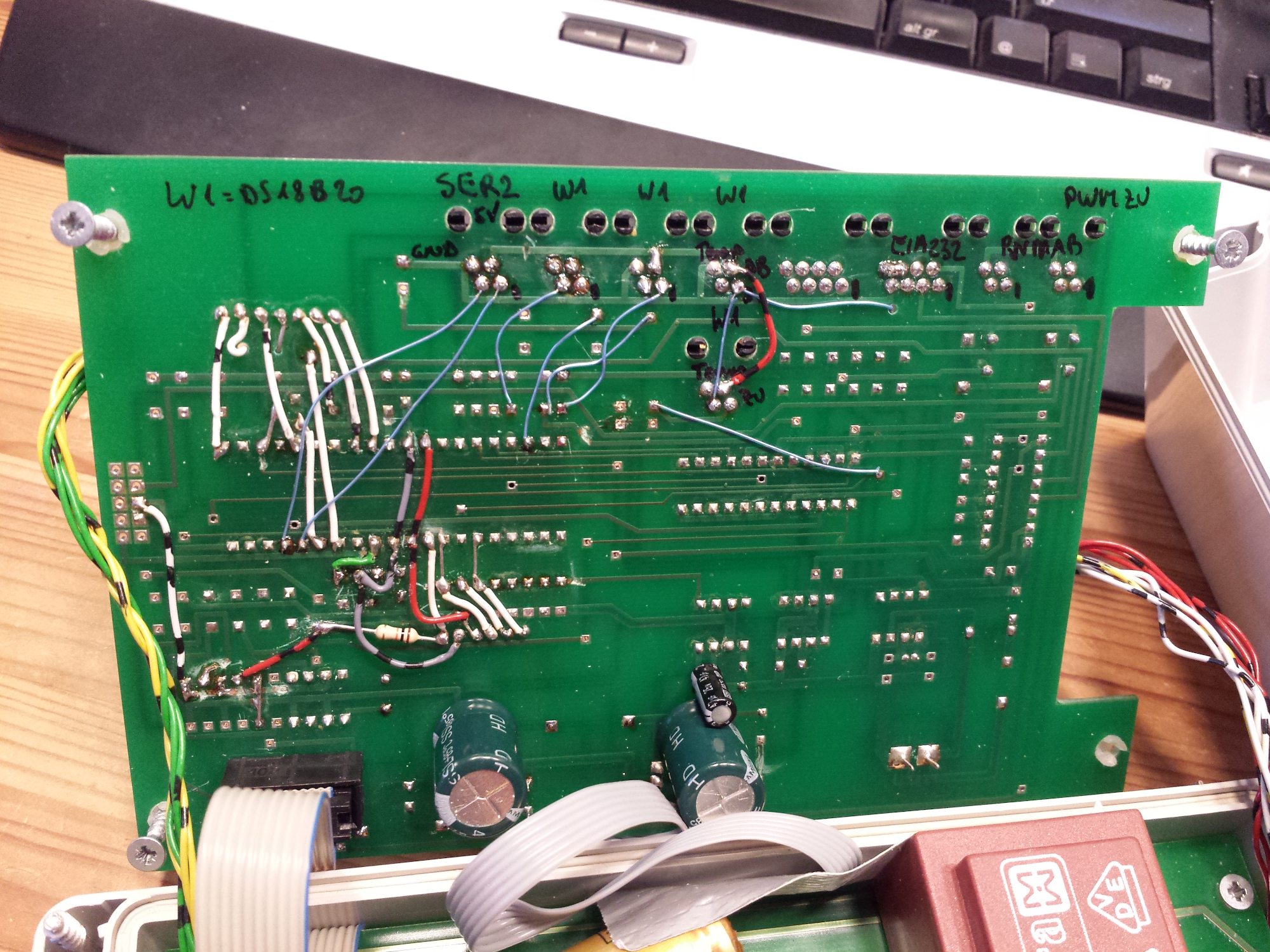

I didn't like the control system so it was replaced with an AVR Atmega. In 2014 I saw, that the transformer overheated and replaced it with an 48V switching power supply. 2016 after 17 years of working one of the vents began to be noisy (pictures at the end of the page).

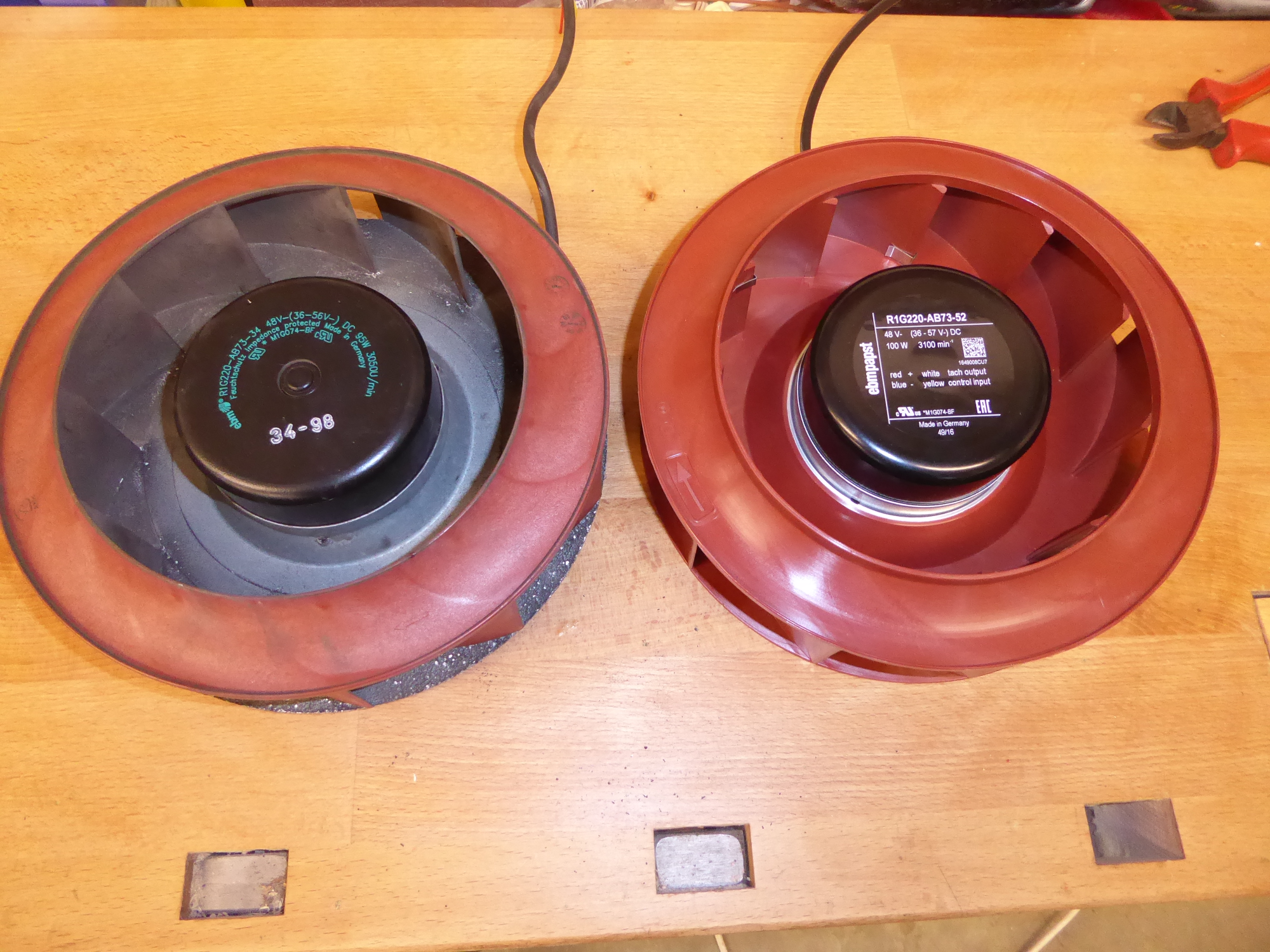

I decided it was time to replace the vents and wanted a system that could be managed over Ethernet.

A Raspberry Pi (Raspi) should do the MQTT publishing. The real time hardware part should be done with an Arduino (Teensy 2.0). Both are connected through I²C.

The cool thing is that the Arduino IDE runs on the Raspi and so reprogramming is really easy with the help of VNC. I added also four temperature and humidity sensors, a temperature sensor for the housing and an CO2 sensor.

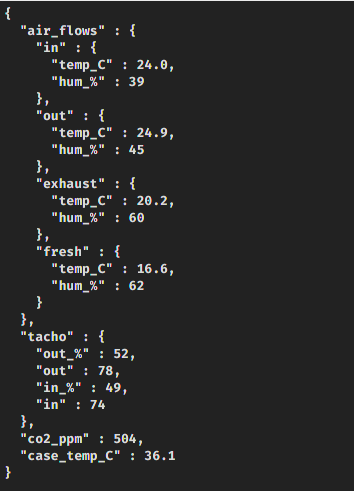

The MVHR is now sending MQTT messages in JSON format:

piventi mqtt message

and with the following JSON string we can change the flow-rate:

piventi mqtt message

This can be done e.g. with the Pitoucon device.

Hardware

An MHVR is quite a simple system if PWM controlled ventilators are used. I'm refurbishing here my old MVHR. But another solution used for a school project was to buy a system without electronics and to built the electronics needed.

BOM

Circuit


piventi circuit

Software

I choose the Raspi OS image with desktop, so it is possible to enable VNC and administrate the piventi (and reprogram the Raspi or the Teensy) from every computer in the network. For MQTT we need to install the Python library:

    sudo apt install python3-pip
    sudo python3 -m pip install paho-mqtt

Install (newest) Arduino IDE and Teensyloader on Raspi

Run these commands in terminal to update your raspi and to make a folder named arduino in your home directory:

    sudo apt update
    sudo apt upgrade
    sudo apt dist-upgrade
    mkdir ~/arduino

Download the newest Arduino version (Linux ARM version!!) on [arduino.cc](

    cd ~/arduino/arduino-1.8.12
    sudo ./install.sh

Download the newest Teensyduino version (ARM version!!) on pjrc.com. Make the file executable and run it. Choose the right directory with your arduino (e. g. ~/arduino/arduino-1.8.12).

To set up the udev rules (so you have not to be root to use your Teensy), use this file: udev rules and copy it to /etc/udev/rules.d. Restart your raspi ()sudo reboot).

Start at boot

To start the script, add the following line to your /etc/rc.local file (sleep waits for the network) before the exit line:

    (sleep 10 #wait for network
    python3 /home/pi/piventi/piventi.py) &

I use ethernet but if you want to use WiFi add also the following line to /etc/rc.local:

    /sbin/iw dev wlan0 set power_save off

Teensy software

The Teensy software (download at the end of the page) creates an I2C slave and gets the data from the 4 temperature and humidity sensors. It also sends the PWM signal to the two vents and gets the two Tacho signals using pin change interrupts.

    // piventi.ino weigu.lu

    #include <Wire.h>
    #include "Sensirion.h"

    #ifndef cbi
    #define cbi(sfr, bit) (_SFR_BYTE(sfr) &= ~_BV(bit))
    #endif

    // Sensirion(dataPin, sclkPin, address, noholdmaster);
    Sensirion sht1 = Sensirion(2, 1);   // clk1  PB1, data1 PB2
    Sensirion sht2 = Sensirion(3, 4);   // clk2  PB7, data2 PB3
    Sensirion sht3 = Sensirion(9, 12);   // clk3  PD7, data3 PC6
    Sensirion sht4 = Sensirion(16, 13); // clk4  PB4, data4 PF7

    // exhaust
    const byte fan1Pin = 10;    // PC7 on Teensy (OC4A of Timer 4)
    const byte Tacho1Pin = 14;  // PB5 on Teensy (PCINT5)
    const byte PCINTPinT1 = 5;  // PCINT5
    // fresh
    const byte fan2Pin = 15;    // PB6 on Teensy (OC4B of Timer 4)
    const byte Tacho2Pin = 0;   // PB0 on Teensy (PCINT0)
    const byte PCINTPinT2 = 0;  // PCINT0

    const byte teensyLED = 11; // PD6 Teensy LED
    const byte teensyI2CAddr = 0x20;

    volatile byte oldPort = 0x00;
    volatile byte T1Cnt = 0, T2Cnt = 0;
    volatile byte T1CntVal = 0, T2CntVal = 0;
    byte volatile Command, Control, Sensor, Tacho;
    byte volatile txTable[10], rxTable[10];

    struct {
      float t1, t2, t3, t4;
      float h1,h2,h3,h4;
      float dp1,dp2,dp3,dp4;
      float h371,h372,h373,h374;
      int ret1,ret2,ret3,ret4;
    } t;

    struct {
      float volatile t1, t2, t3, t4;
      float volatile h1,h2,h3,h4;
      float volatile dp1,dp2,dp3,dp4;
      float volatile h371,h372,h373,h374;
    } data;

    void setup() {
      Command = 0;
      Control = 0;
      Sensor = 0;
      Tacho = 0;
      OCR4A = 127; // both vents on 50%
      OCR4B = 127; // inverted because of Transistor!
      pinMode(teensyLED, OUTPUT);
      pinMode(fan1Pin, OUTPUT);
      pinMode(fan2Pin, OUTPUT);
      // Fast PWM for Teensy Timer 4
      TCCR4A = _BV(COM4A1) | _BV(COM4B1) | _BV(PWM4A) | _BV(PWM4B);
      TCCR4B = _BV(CS42); //3,9kHz
      Wire.begin(teensyI2CAddr);    // join i2c bus
      cbi(PORTD, 0); // no internal PU
      cbi(PORTD, 1); // Raspi has 2x1,8k
      Wire.onReceive(i2cReceive); // i2c interrupt receive
      Wire.onRequest(i2cTransmit); // i2c interrupt send
      pinMode(Tacho1Pin, INPUT_PULLUP);
      pinMode(Tacho2Pin, INPUT_PULLUP);
      attachPinChangeInterrupt();
    }

    void loop() {
      while (!(t.ret1 == S_Meas_Rdy)) {// A new measurement is available
        t.ret1 = sht1.measure(&t.t1, &t.h1, &t.dp1, 37, &t.h371);
        }
      data.t1 = t.t1;
      data.h1 = t.h1;
      data.dp1 = t.dp1;
      data.h371 = t.h371;
      t.ret1 = 0;
      while (!(t.ret2 == S_Meas_Rdy)) {
        t.ret2 = sht2.measure(&t.t2, &t.h2, &t.dp2, 37, &t.h372);} // Measurement
      data.t2 = t.t2;
      data.h2 = t.h2;
      data.dp2 = t.dp2;
      data.h372 = t.h372;
      t.ret2 = 0;
      while (!(t.ret3 == S_Meas_Rdy)) {
        t.ret3 = sht3.measure(&t.t3, &t.h3, &t.dp3, 37, &t.h373);} // Measurement
      data.t3 = t.t3;
      data.h3 = t.h3;
      data.dp3 = t.dp3;
      data.h373 = t.h373;
      t.ret3 = 0;
      while (!(t.ret4 == S_Meas_Rdy)) {
        t.ret4 = sht4.measure(&t.t4, &t.h4, &t.dp4, 37, &t.h374);} // Measurement
      data.t4 = t.t4;
      data.h4 = t.h4;
      data.dp4 = t.dp4;
      data.h374 = t.h374;
      t.ret4 = 0;
      digitalWrite(teensyLED,LOW);
      T1Cnt = 0;
      T2Cnt = 0;
      for (unsigned int i=0; i <= 100; i++) delayMicroseconds(10000); // measure during 1s
      T1CntVal = T1Cnt;
      T2CntVal = T2Cnt;
      digitalWrite(teensyLED,HIGH);
      for (unsigned int i=0; i <= 10; i++) delayMicroseconds(10000); // 100ms*/
    }

    void i2cReceive(int byteCount) {
      while(1 < Wire.available()) {
        char c = Wire.read();
      }
      Command = Wire.read();
      switch (Command) {          // parse vent commands (0x1n, 0x2n)
        case 0x10:
          OCR4A = 255;  // off
          break;
        case 0x11:
          OCR4A = 1;    // 100%
          break;
        case 0x12:
          OCR4A = 225;  // 20%
          break;
        case 0x13:
          OCR4A = 215;  // 30%
          break;
        case 0x14:
          OCR4A = 200;  // 40%
          break;
        case 0x15:
          OCR4A = 178;  // 50%
          break;
        case 0x16:
          OCR4A = 153;  // 60%
          break;
        case 0x17:
          OCR4A = 130;  // 70%
          break;
        case 0x18:
          OCR4A = 90;   // 80%
          break;
        case 0x19:
          OCR4A = 60;   // 90%
          break;
        case 0x20:
          OCR4B = 255;  // off
          break;
        case 0x21:
          OCR4B = 1;    // 100%
          break;
        case 0x22:
          OCR4B = 225;  // 20%
          break;
        case 0x23:
          OCR4B = 215;  // 30%
          break;
        case 0x24:
          OCR4B = 200;  // 40%
          break;
        case 0x25:
          OCR4B = 178;  // 50%
          break;
        case 0x26:
          OCR4B = 153;  // 60%
          break;
        case 0x27:
          OCR4B = 130;  // 70%
          break;
        case 0x28:
          OCR4B = 90;   // 80%
          break;
        case 0x29:
          OCR4B = 60;   // 90%
          break;
        case 0x31:
          Sensor = 1;
          Control = 8;
          break;
        case 0x32:
          Sensor = 2;
          Control = 8;
          break;
        case 0x33:
          Sensor = 3;
          Control = 8;
          break;
        case 0x34:
          Sensor = 4;
          Control = 8;
          break;
        case 0x41:
          Tacho = 1;
          Control = 1;
          break;
        case 0x42:
          Tacho = 2;
          Control = 1;
          break;
        default:
          break;
      }
      Command = 0;
    }

    void i2cTransmit() {
      int tmp1 = 0; // temporary variable used in switch occasionally below
      if (Control == 0) return;
      Control -= 1;
      switch (Sensor) {
        case 1: //
          tmp1 = int(round(data.t1 * 100));
          txTable[6] = (byte)(tmp1 & 0xFF);
          txTable[7] = (byte)(tmp1 >> 8);
          tmp1 = int(round(data.h1 * 100));
          txTable[4] = (byte)(tmp1 & 0xFF);
          txTable[5] = (byte)(tmp1 >> 8);
          tmp1 = int(round(data.dp1 * 100));
          txTable[2] = (byte)(tmp1 & 0xFF);
          txTable[3] = (byte)(tmp1 >> 8);
          tmp1 = int(round(data.h371 * 100));
          txTable[0] = (byte)(tmp1 & 0xFF);
          txTable[1] = (byte)(tmp1 >> 8);
          break;
        case 2: //
          tmp1 = int(round(data.t2 * 100));
          txTable[6] = (byte)(tmp1 & 0xFF);
          txTable[7] = (byte)(tmp1 >> 8);
          tmp1 = int(round(data.h2 * 100));
          txTable[4] = (byte)(tmp1 & 0xFF);
          txTable[5] = (byte)(tmp1 >> 8);
          tmp1 = int(round(data.dp2 * 100));
          txTable[2] = (byte)(tmp1 & 0xFF);
          txTable[3] = (byte)(tmp1 >> 8);
          tmp1 = int(round(data.h372 * 100));
          txTable[0] = (byte)(tmp1 & 0xFF);
          txTable[1] = (byte)(tmp1 >> 8);
          break;
        case 3: //
          tmp1 = int(round(data.t3 * 100));
          txTable[6] = (byte)(tmp1 & 0xFF);
          txTable[7] = (byte)(tmp1 >> 8);
          tmp1 = int(round(data.h3 * 100));
          txTable[4] = (byte)(tmp1 & 0xFF);
          txTable[5] = (byte)(tmp1 >> 8);
          tmp1 = int(round(data.dp3 * 100));
          txTable[2] = (byte)(tmp1 & 0xFF);
          txTable[3] = (byte)(tmp1 >> 8);
          tmp1 = int(round(data.h373 * 100));
          txTable[0] = (byte)(tmp1 & 0xFF);
          txTable[1] = (byte)(tmp1 >> 8);
          break;
        case 4: //
          tmp1 = int(round(data.t4 * 100));
          txTable[6] = (byte)(tmp1 & 0xFF);
          txTable[7] = (byte)(tmp1 >> 8);
          tmp1 = int(round(data.h4 * 100));
          txTable[4] = (byte)(tmp1 & 0xFF);
          txTable[5] = (byte)(tmp1 >> 8);
          tmp1 = int(round(data.dp4 * 100));
          txTable[2] = (byte)(tmp1 & 0xFF);
          txTable[3] = (byte)(tmp1 >> 8);
          tmp1 = int(round(data.h374 * 100));
          txTable[0] = (byte)(tmp1 & 0xFF);
          txTable[1] = (byte)(tmp1 >> 8);
          break;
        default:
          break; }
      if (Tacho == 1) { txTable[0] = T1CntVal; }
      else {
        if (Tacho == 2) { txTable[0] = T2CntVal;}}
      Wire.write(txTable[Control]); }

    void attachPinChangeInterrupt(void) {
      oldPort = PINB;
      // pin change mask registers decide which pins are enabled as triggers
      PCMSK0 |= (1 << PCINTPinT1); //PCINT0
      PCMSK0 |= (1 << PCINTPinT2); //PCINT5
      // PCICR: Pin Change Interrupt Control Register - enables interrupt vectors
      PCICR |= (1 << PCIE0); }

    ISR(PCINT0_vect) {
      byte newPort = PINB;             // get the new pin states
      byte change = newPort ^ oldPort; // xor to detect a rising or falling
      // check which pins are triggered, compared with the settings
      byte rising = change & newPort;
      byte mask1 = (1 << PCINTPinT1);
      if (rising & mask1) T1Cnt++;
      byte mask2 = (1 << PCINTPinT2);
      if (rising & mask2) T2Cnt++;
      oldPort = newPort; }  // save the new state for next comparison

Raspi software

The Python script (download at the end of the page) creates an I2 master and uses the paho-mqtt library to send and get (callback) MQTT messages. It also reads the CO2 sensor and the temperature sensor measuring the housing temperature.

    #!/usr/bin/env python3
    # -*- coding: utf-8 -*-

    from smbus import SMBus
    from time import sleep
    import serial
    import glob
    import json
    import paho.mqtt.client as mqtt

    port = 1 # (0 for rev.1, 1 for rev 2!)
    bus = SMBus(port)
    TeensyAddr = 0x20

    ser = serial.Serial("/dev/ttyAMA0",baudrate =9600,timeout = .5)
    ser.flushInput()
    sleep(1)

    deviceFolder = glob.glob('/sys/bus/w1/devices/28*')  # find the file
    deviceFolderString = deviceFolder[0]
    deviceFile = deviceFolderString + '/w1_slave'

    clientID = "tzgtzhju"
    brokerIP = "192.168.1.111"
    brokerPort = 1883
    topic  = "myhouse/ventilation"
    DEBUG=0

    def onConnect(client, userdata, flags, rc):
       if DEBUG: print("Connected with result code " + str(rc))
       mqttc.subscribe(topic, 0)  # Subscribe to the topic (topic name, QoS)

    def onDisconnect(client, userdata, message):
       if DEBUG: print("Disconnected from the broker.")

    def onSubscribe(client, userdata, mid, granted_qos):
       if DEBUG: print('Subscribed on topic.')

    def onUnsubscribe(client, userdata, mid, granted_qos):
       if DEBUG: print('Unsubscribed on topic.')

    def onMessage(client, userdata, message):
        if DEBUG: print('message received:')
        io = message.payload.decode("utf-8");
        if (io[0:4] != "{\"in"): # ignore own message on same topic
            try:
                 ioj=json.loads(io)
                 flow = int(ioj["flow-rate"])
                 if (flow/10) in range(2,10):
                     c = flow//10
                 if flow == 100:
                     c = 1
                 if flow > 100:
                     c = 70
                 print(c)
                 rd = bus.write_byte(TeensyAddr,0x10+c)
                 sleep(0.001)
                 rd = bus.write_byte(TeensyAddr,0x20+c)
                 sleep(0.001)
            except:
                 print("onmessage loop not executed (json error or I2C I/O error?)")

    def readTemp():
        try:
            f = open(deviceFile, 'r')
        except IOError:
            print('IOError')
        line1 = f.readline()
        line2 = f.readline()
        f.close()
        pos = line2.find('t=')
        if pos != -1:
            tempString = line2[pos + 2:]
            temp = round(float(tempString) / 1000.0, 1)
        else:
            print('error')
        return temp

    # MAIN

    mqttc = mqtt.Client(client_id=clientID, clean_session=True) # create client

    mqttc.on_connect      = onConnect   # define the callback functions
    mqttc.on_disconnect   = onDisconnect
    mqttc.on_subscribe    = onSubscribe
    mqttc.on_unsubscribe  = onUnsubscribe
    mqttc.on_message      = onMessage

    mqttc.connect(brokerIP, brokerPort, keepalive=60, bind_address="") # connect to the broker
    mqttc.loop_start() # start loop to process callbacks! (new thread!)

    try:
        rd = bus.write_byte(TeensyAddr,0x17)
        sleep(0.001)
        rd = bus.write_byte(TeensyAddr,0x27)
        sleep(0.001)
    except:
        print("OSError occured: 121 RemoteI/O error")

    try:
        while (True):
            SENS=["","","","","","","",""]
            TACHO=["","","",""]
            for i in range(1,5):
                try:
                    d = bus.write_byte(TeensyAddr,0x30+i)
                    rd1 = bus.read_byte(TeensyAddr)
                    rd2 = bus.read_byte(TeensyAddr)
                    STemp = str(round(((rd1*256+rd2)/100),1))
                    if i==1:
                        print ("inflow: ", end='')
                    elif i==2:
                        print ("outflow: ", end='')
                    elif i==3:
                        print ("exhaust: ", end='')
                    else:
                        print ("fresh: ", end='')
                    print ("temp: " + STemp, end='')
                    rd1 = bus.read_byte(TeensyAddr)
                    rd2 = bus.read_byte(TeensyAddr)
                    SHum = str(round((rd1*256+rd2)/100))
                    print ("°C hum: " + SHum, end='')
                    print ("%")
                    rd1 = bus.read_byte(TeensyAddr)
                    rd2 = bus.read_byte(TeensyAddr)
                    rd1 = bus.read_byte(TeensyAddr)
                    rd2 = bus.read_byte(TeensyAddr)
                    SENS[(i-1)*2]= STemp
                    SENS[(i-1)*2+1]= SHum
                except:
                    continue
            for i in range(1,3): # 3 pulses/rotation, speed 3100/min = 5,7*3 = 155 meas: 151
                try:
                    rd = bus.write_byte(TeensyAddr,0x40+i)
                    rd1 = bus.read_byte(TeensyAddr)
                    Tacho = str(rd1)
                    Tachop = str(round(rd1*100/151))
                    if i==1:
                        print ("tacho out: ", end='')
                    else:
                        print ("tacho in:  ", end='')
                    print(Tachop, end='')
                    print ("%  ", end='')
                    print(Tacho)
                    TACHO[(i-1)*2] = Tachop
                    TACHO[(i-1)*2+1] = Tacho
                except:
                    continue
            try:
                ser.flushInput()
                ser.write(b"\xFE\x44\x00\x08\x02\x9F\x25")
                sleep(.5)
                resp = ser.read(7)
                co2 = (resp[3]*256) + resp[4]
                CO2 = str(co2)
                print ("CO2 in ppm: " + CO2)
                sleep(0.1)
            except:
                continue
            ATEMP = str(readTemp())
            print("vent housing temp in °C:",ATEMP)
            sleep(60)
            print('\n')
            mqttc.publish(topic,'{"air_flows":{"in":{"temp_C":' + SENS[0] +
                          ',"hum_%":' + SENS[1] + '},"out":{"temp_C":' +
                          SENS[2] + ',"hum_%":' + SENS[3] + '},"exhaust":'
                          '{"temp_C":' + SENS[4] + ',"hum_%":' + SENS[5] +
                          '},"fresh":{"temp_C":' + SENS[6] + ',"hum_%":' +
                          SENS[7] + '}},"tacho":{"out_%":' + TACHO[0] +
                          ',"out":' + TACHO[1] + ',"in_%":' + TACHO[2] +
                          ',"in":' + TACHO[3] + '},"co2_ppm":' + CO2 +
                          ',"case_temp_C":' + ATEMP + '}')

    except KeyboardInterrupt:
        print("Keyboard interrupt by user")

Downloads

Nostalgia

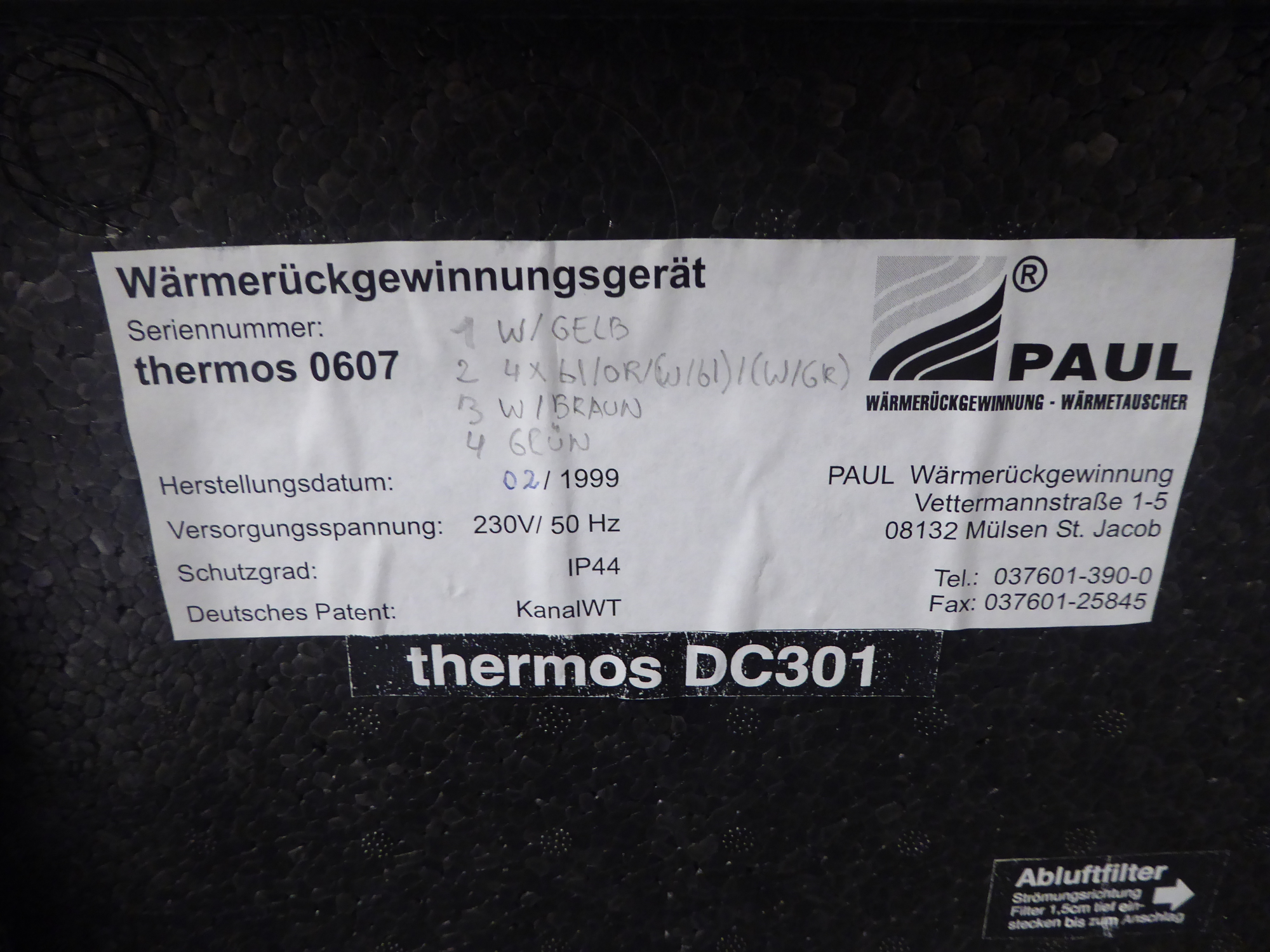

Paul ventilation label

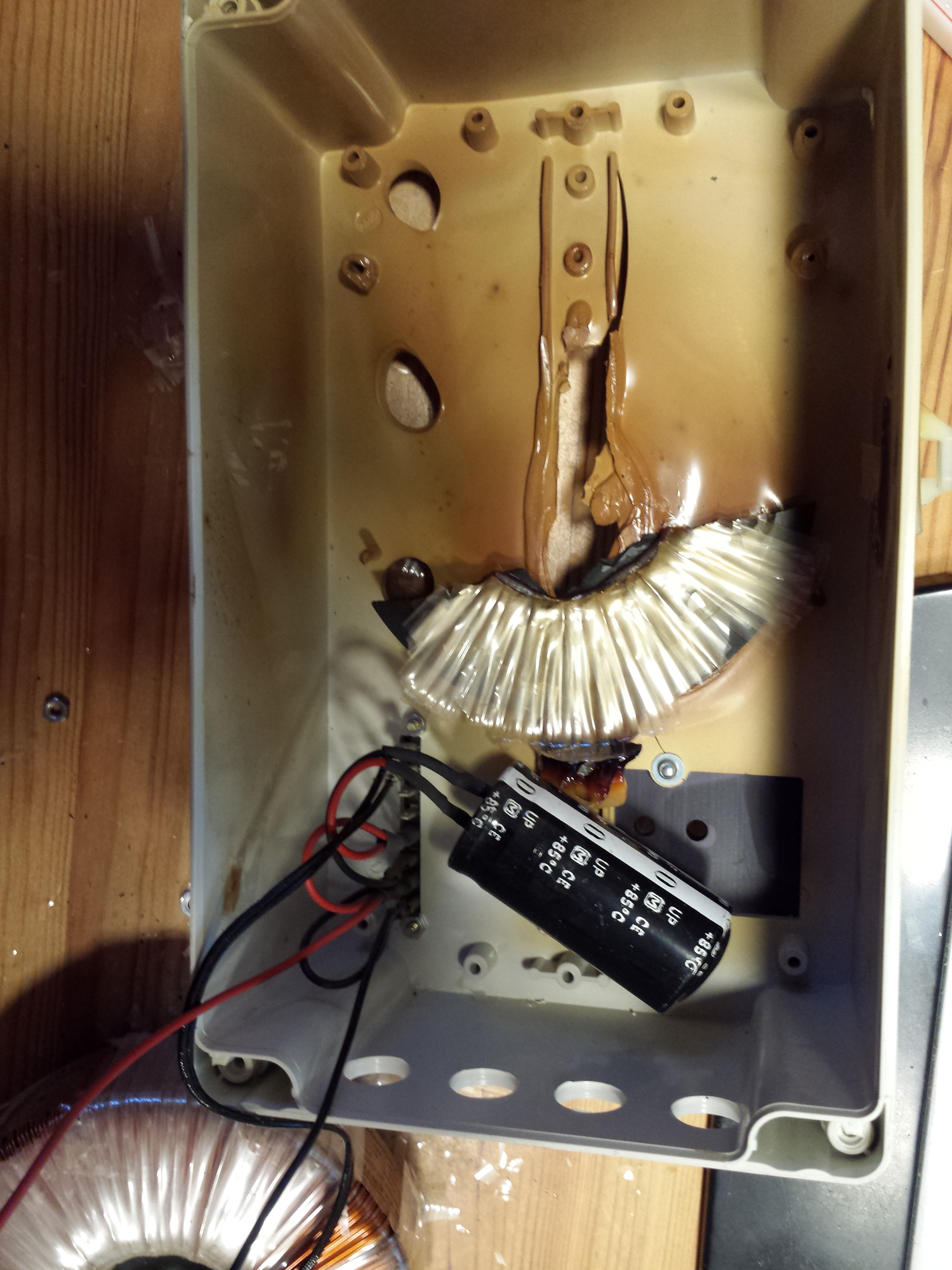

Paul ventilation housing    Paul ventilation melt

Paul ventilation avr 1    Paul ventilation avr 2

ventilators
