FreeCAD Macro to create a 3d printable case with snap-on lid

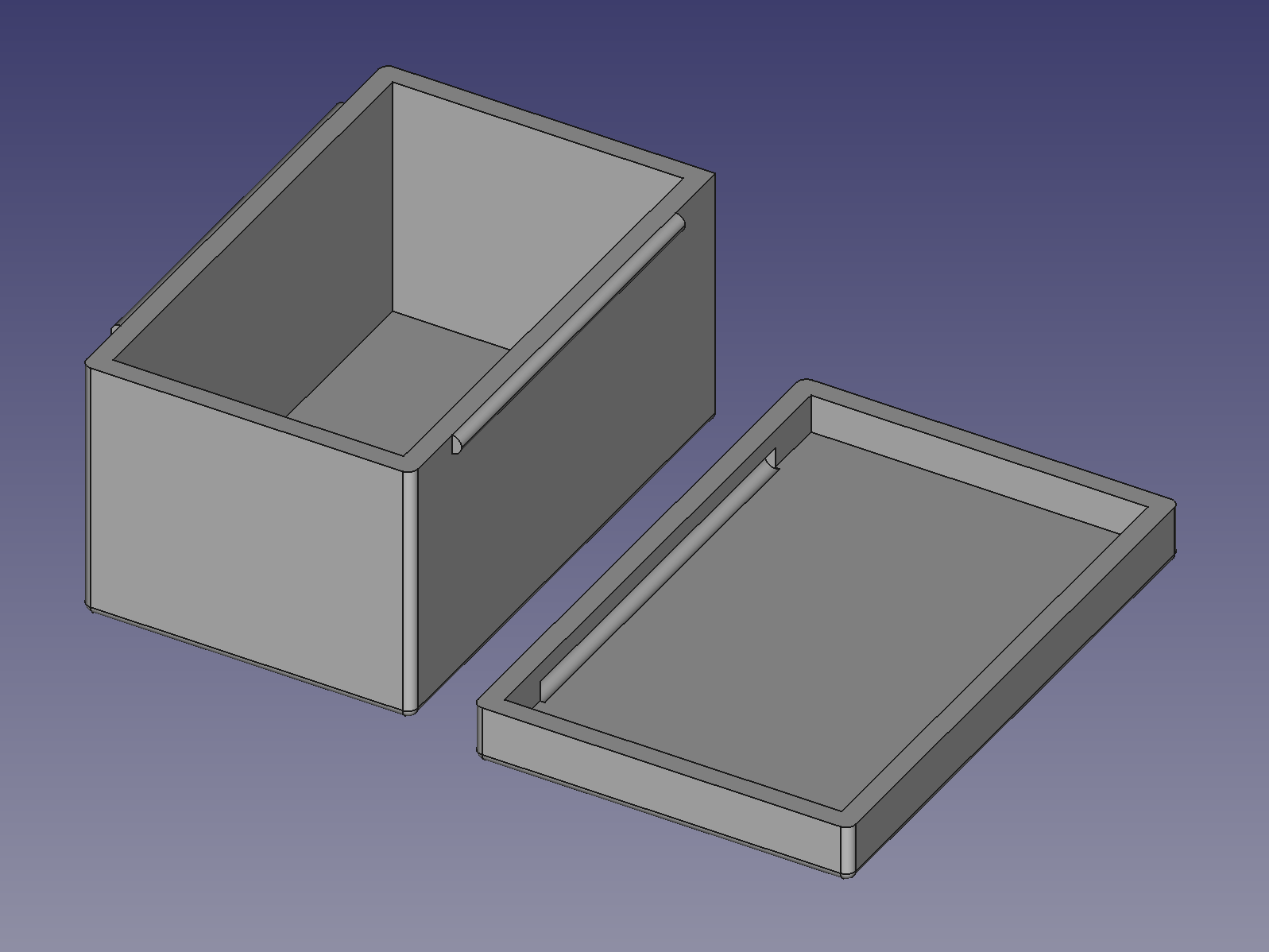

freecad simple 3d print box

Intro

I often need a small box to protect electronic circuits. It's cumbersome to recalculate the dimensions and redraw always the same box, so here a macro to do it. After the macro does his work, I can add the holes needed for cables, or fixations for the PCB.

The box has a snap-on lid, so there are no screws needed to fix the lid.

The python code

I chose to use the Part workbench because I find it more intuitive for small projects. The dimensions are inside the box!

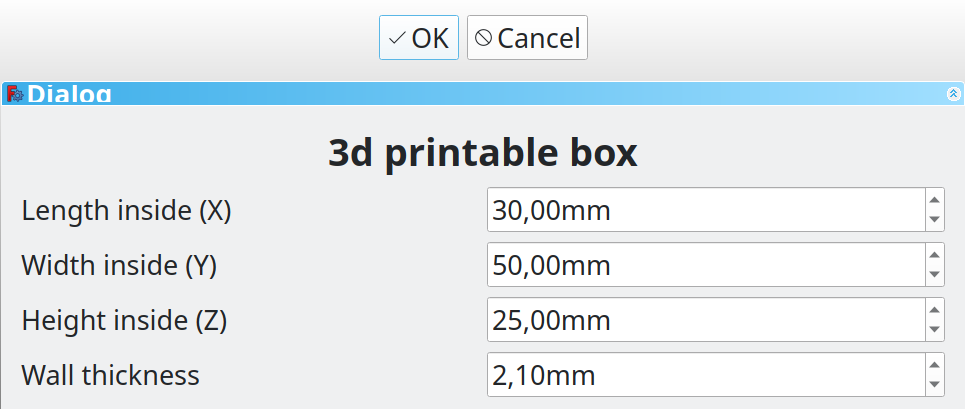

macro ui

The dialog is in the file Simple_3d_print_box_creator.ui that must be in the same folder then the macro and can be edited with the software Qt Creator.

The thickness of the box should be a multiple of the nozzle diameter e,g, 5x0.4 mm = 2 mm.

The macro also creates the stl files for 3d printing if the box should be used as is.

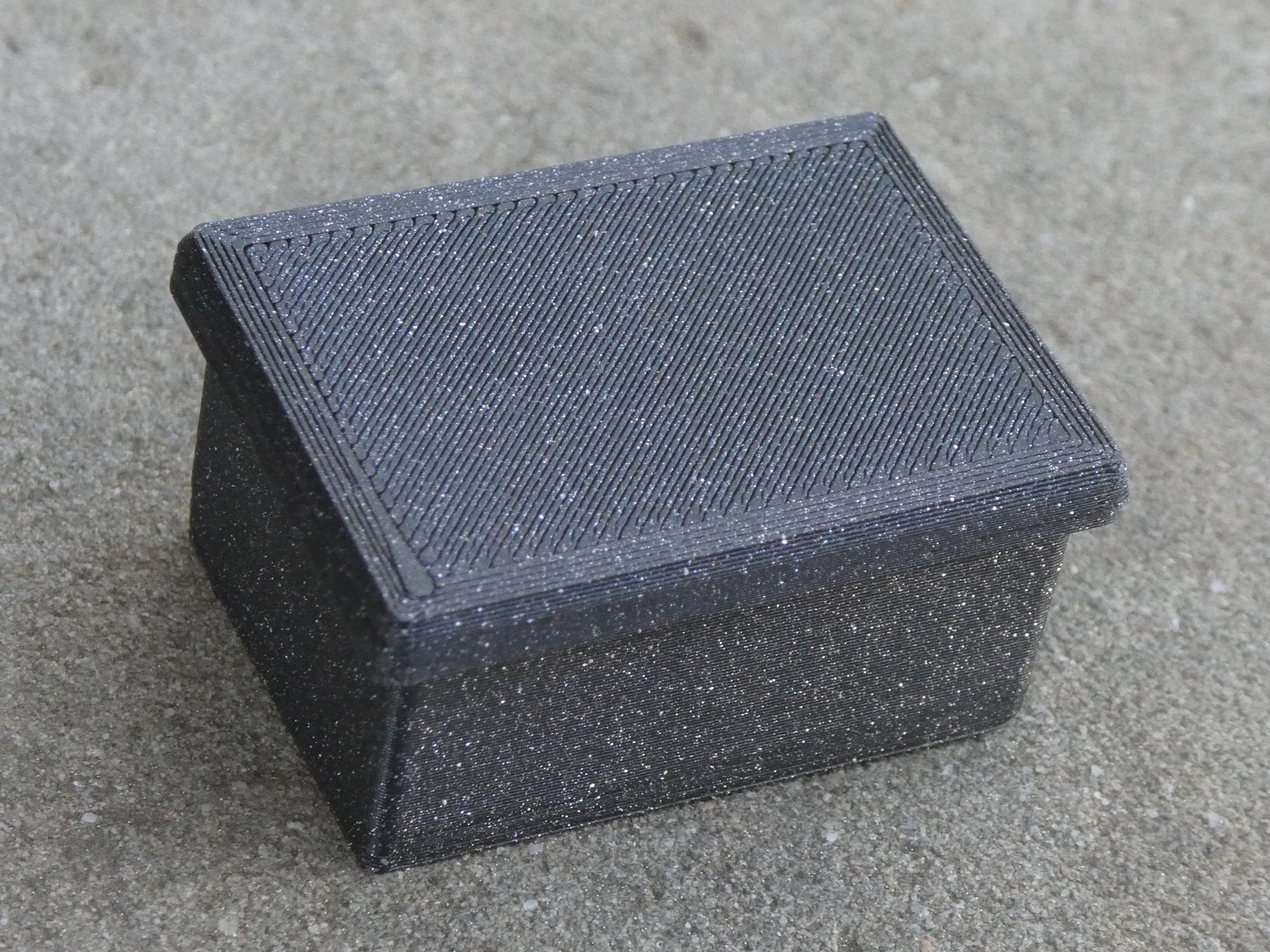

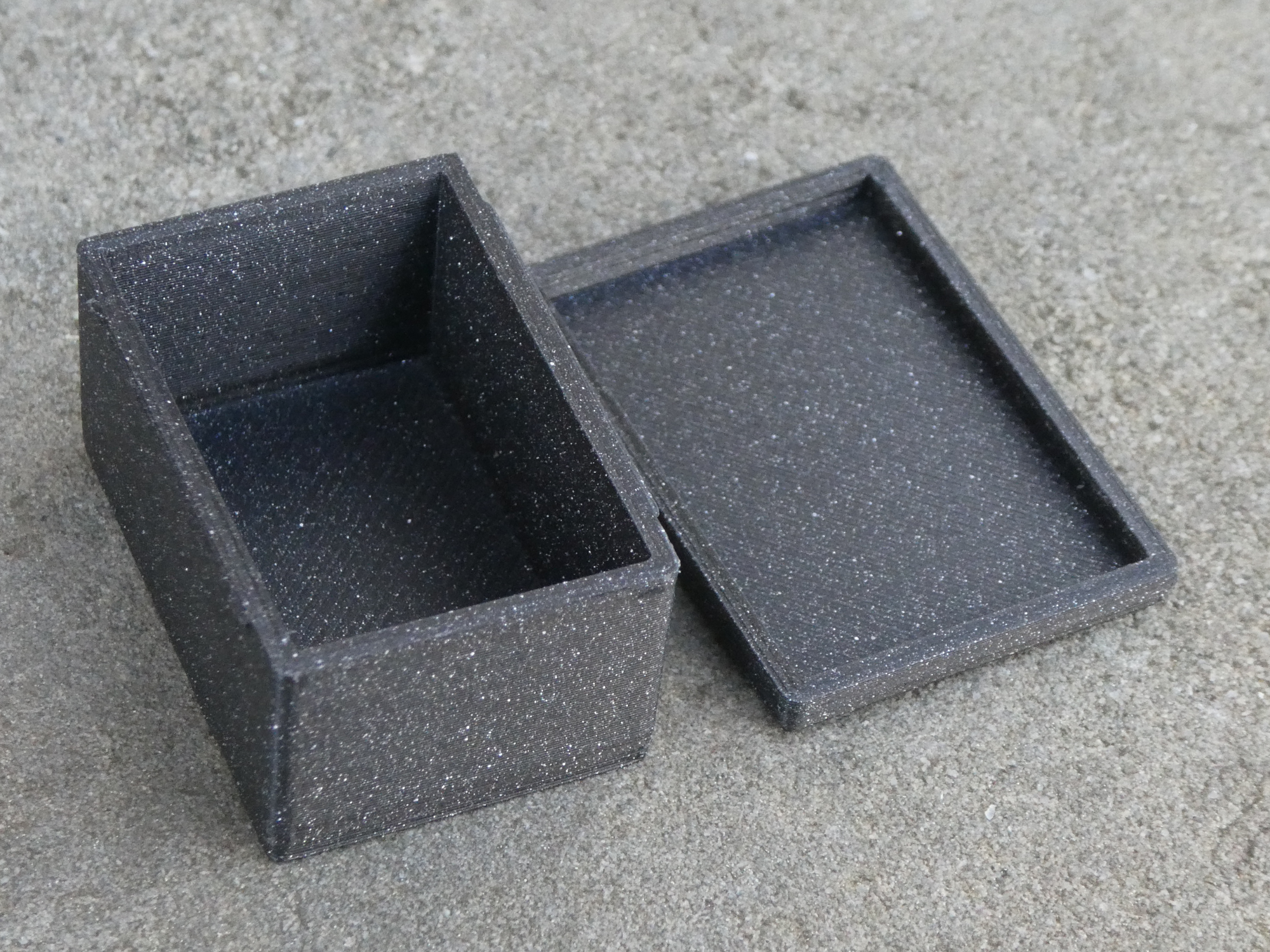

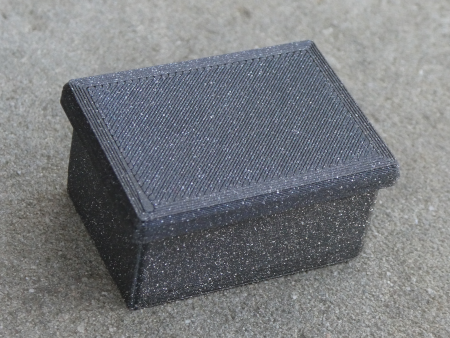

3d print box closed       3d print box open

Now here is the code, that you can also find on github:

# -*- coding: utf-8 -*-
#
# Simple_3d_print_box_creator.FCMacro
#
# by weigu.lu
#
# https://wiki.freecad.org/Manual:Creating_interface_tools

__Name__ = 'Simple_3d_print_box_creator'
__Comment__ = 'Creates a simple box with lid that can be clipped'
__Author__ = 'weigu.lu'
__Version__ = '1.0.0'
__Date__ = '2024-04-23'
__License__ = 'LGPL-3.0-or-later'
__Web__ = 'https:www.weigu.lu'
__Help__ = 'Try it out and play with it. It should be self explanatory'
__Status__ = 'Zeta'
__Files__ = 'Simple_3d_print_box_creator.FCMacro, Simple_3d_print_box_creator.ui'

import FreeCAD,FreeCADGui,Part
from BOPTools import BOPFeatures

# Get location of user macros
macro_path = FreeCAD.ParamGet("User parameter:BaseApp/Preferences/Macro").GetString("MacroPath")
#FreeCAD.Console.PrintMessage(macro_path)
ui_file = macro_path + "/" + __Name__ + ".ui"
#FreeCAD.Console.PrintMessage(ui_file)

# Names
case_inside_name = "case_inside"
case_outside_name = "case_outside"
case_cut_name = "case_cut_inside_outside"
case_fusion_name = "fusion_case_tongues"
case_name = "case"
case_tongue_left_name = "tongue_left"
case_tongue_right_name = "tongue_right"
lid_inside_name = "lid_inside"
lid_outside_name = "lid_outside"
lid_cut_name = "lid_cut_inside_outside"
lid_cutr_name = "lid_cut_groove"
lid_cutl_name = "lid_cut_groove_left"
lid_name = "lid"
lid_groove_left_name = "lid_groove_left"
lid_groove_right_name = "lid_groove_right"

class Box_UI:
   def __init__(self):
       # this will create a Qt widget from our ui file
       self.form = FreeCADGui.PySideUic.loadUi(ui_file)

   def accept(self):
       length = self.form.box_length.value()
       App.Console.PrintMessage(length)
       width = self.form.box_width.value()
       height = self.form.box_height.value()
       thickness = self.form.box_thickness.value()
       if (length == 0) or (width == 0) or (height == 0) or (thickness == 0):
           print("Error! None of the values can be 0!")
           return # we bail out without doing anything
       make_case(length, width, height, thickness)
       FreeCADGui.Control.closeDialog()

def make_case(length, width, height, thickness):
    # make case cut
    if thickness < 2:
         tongue_radius = 0.5
    else:
         tongue_radius = 1
    groove_radius = tongue_radius*1.1
    tongue_distance_from_edge = width/10
    lid_height = tongue_radius*4
    lid_play = 0.3
    groove_distance_from_edge = tongue_distance_from_edge-1
    App.ActiveDocument.addObject("Part::Box",case_inside_name)
    App.ActiveDocument.ActiveObject.Label = case_inside_name
    App.ActiveDocument.ActiveObject.Length = length
    App.ActiveDocument.ActiveObject.Width = width
    App.ActiveDocument.ActiveObject.Height = height
    App.ActiveDocument.addObject("Part::Box",case_outside_name)
    App.ActiveDocument.ActiveObject.Label = case_outside_name
    App.ActiveDocument.ActiveObject.Length = length+thickness*2
    App.ActiveDocument.ActiveObject.Width = width+thickness*2
    App.ActiveDocument.ActiveObject.Height = height+thickness
    App.ActiveDocument.ActiveObject.Placement.Base = -thickness, -thickness, -thickness
    cut_2_objects(case_outside_name,case_inside_name)
    App.ActiveDocument.getObject('Cut').Label = case_cut_name
    # make left tongue and groove
    App.ActiveDocument.addObject("Part::Cylinder",case_tongue_left_name)
    App.ActiveDocument.ActiveObject.Label = case_tongue_left_name
    App.ActiveDocument.ActiveObject.Radius = tongue_radius
    App.ActiveDocument.ActiveObject.Height = width-tongue_distance_from_edge*2
    App.ActiveDocument.ActiveObject.Placement.Rotation = App.Rotation(App.Vector(1,0,0),-90)
    App.ActiveDocument.ActiveObject.Placement.Base = -thickness,tongue_distance_from_edge, \
                                                     height - tongue_radius
    App.ActiveDocument.addObject("Part::Cylinder",lid_groove_left_name)
    App.ActiveDocument.ActiveObject.Label = lid_groove_left_name
    App.ActiveDocument.ActiveObject.Radius = groove_radius
    App.ActiveDocument.ActiveObject.Height = width-groove_distance_from_edge*2
    App.ActiveDocument.ActiveObject.Placement.Rotation = App.Rotation(App.Vector(1,0,0),-90)
    App.ActiveDocument.ActiveObject.Placement.Base = -thickness - lid_play, \
                                                     groove_distance_from_edge, \
                                                     tongue_radius
    # make right tongue and groove
    App.ActiveDocument.addObject("Part::Cylinder",case_tongue_right_name)
    App.ActiveDocument.ActiveObject.Label = case_tongue_right_name
    App.ActiveDocument.ActiveObject.Radius = tongue_radius
    App.ActiveDocument.ActiveObject.Height = width-tongue_distance_from_edge*2
    App.ActiveDocument.ActiveObject.Placement.Rotation = App.Rotation(App.Vector(1,0,0),-90)
    App.ActiveDocument.ActiveObject.Placement.Base = length + thickness, \
                                                     tongue_distance_from_edge, \
                                                     height - tongue_radius
    App.ActiveDocument.addObject("Part::Cylinder",lid_groove_right_name)
    App.ActiveDocument.ActiveObject.Label = lid_groove_right_name
    App.ActiveDocument.ActiveObject.Radius = groove_radius
    App.ActiveDocument.ActiveObject.Height = width-groove_distance_from_edge*2
    App.ActiveDocument.ActiveObject.Placement.Rotation = App.Rotation(App.Vector(1,0,0),-90)
    App.ActiveDocument.ActiveObject.Placement.Base = length + thickness+lid_play, \
                                                     groove_distance_from_edge, \
                                                     tongue_radius
    fuse_3_objects("Cut", case_tongue_left_name, case_tongue_right_name)
    App.ActiveDocument.getObject('Fusion').Label = case_fusion_name
    add_fillets_to_case()
    App.ActiveDocument.getObject('Fillet').Label = case_name
    # make lid cut
    App.ActiveDocument.addObject("Part::Box",lid_inside_name)
    App.ActiveDocument.ActiveObject.Label = lid_inside_name
    App.ActiveDocument.ActiveObject.Length = length + thickness*2 + lid_play*2
    App.ActiveDocument.ActiveObject.Width = width + thickness*2 + lid_play*2
    App.ActiveDocument.ActiveObject.Height = lid_height
    App.ActiveDocument.ActiveObject.Placement.Base = -thickness-lid_play, -thickness-lid_play, 0
    App.ActiveDocument.addObject("Part::Box",lid_outside_name)
    App.ActiveDocument.ActiveObject.Label = lid_outside_name
    App.ActiveDocument.ActiveObject.Length = length+thickness*4+lid_play*2
    App.ActiveDocument.ActiveObject.Width = width+thickness*4+lid_play*2
    App.ActiveDocument.ActiveObject.Height = lid_height + thickness
    App.ActiveDocument.ActiveObject.Placement.Base = -thickness*2 - lid_play, \
                                                     -thickness*2 - lid_play, \
                                                     -thickness
    cut_2_objects(lid_outside_name,lid_inside_name)
    App.ActiveDocument.getObject('Cut001').Label = lid_cut_name
    cut_2_objects("Cut001",lid_groove_right_name)
    App.ActiveDocument.getObject('Cut002').Label = lid_cutr_name
    cut_2_objects("Cut002",lid_groove_left_name)
    App.ActiveDocument.getObject('Cut003').Label = lid_cutl_name
    add_fillets_to_lid()
    App.ActiveDocument.getObject('Fillet001').Label = lid_name
    App.ActiveDocument.ActiveObject.Placement.Base = length + thickness*2 + 10, 0, 0
    App.ActiveDocument.recompute()
    App.getDocument("Unnamed").saveAs(u"/home/weigu/FreeCAD/simple_3d_print_box")
    base_filename = "simple_3d_print_box"
    doc = FreeCAD.activeDocument()
    for obj in doc.Objects:
        if obj.ViewObject.Visibility:
            filename = base_filename + "_" + obj.Label + ".stl"
            obj.Shape.exportStl(filename)
    App.Console.PrintMessage("\ndone") # Write to console

def cut_2_objects(name1, name2):
    bp = BOPFeatures.BOPFeatures(App.activeDocument())
    bp.make_cut([name1,name2])

def fuse_3_objects(name1, name2, name3):
    bp = BOPFeatures.BOPFeatures(App.activeDocument())
    bp.make_multi_fuse([name1, name2, name3])

def add_fillets_to_case():
    FreeCAD.ActiveDocument.addObject("Part::Fillet","Fillet")
    FreeCAD.ActiveDocument.Fillet.Base = FreeCAD.ActiveDocument.Fusion
    __fillets__ = []
    __fillets__.append((18,1.00,1.00))
    __fillets__.append((19,1.00,1.00))
    __fillets__.append((20,1.00,1.00))
    __fillets__.append((21,1.00,1.00))
    __fillets__.append((23,1.00,1.00))
    __fillets__.append((24,1.00,1.00))
    __fillets__.append((28,1.00,1.00))
    FreeCAD.ActiveDocument.Fillet.Edges = __fillets__
    del __fillets__
    FreeCADGui.ActiveDocument.Fusion.Visibility = False

def add_fillets_to_lid():
    FreeCAD.ActiveDocument.addObject("Part::Fillet","Fillet001")
    FreeCAD.ActiveDocument.Fillet001.Base = FreeCAD.ActiveDocument.Cut003
    __fillets__ = []
    __fillets__.append((1,1.00,1.00))
    __fillets__.append((3,1.00,1.00))
    __fillets__.append((4,1.00,1.00))
    __fillets__.append((5,1.00,1.00))
    __fillets__.append((6,1.00,1.00))
    __fillets__.append((14,1.00,1.00))
    __fillets__.append((15,1.00,1.00))
    __fillets__.append((16,1.00,1.00))
    FreeCAD.ActiveDocument.Fillet001.Edges = __fillets__
    del __fillets__
    FreeCADGui.ActiveDocument.Cut003.Visibility = False

def macro_body():
    FreeCAD.Console.PrintMessage("\n'Simple 3d printable box macro by weigu.lu'\n")
    ui = Box_UI()
    FreeCADGui.Control.showDialog(ui)

if __name__ == '__main__':
    macro_body()
